Heavy-Duty Hydraulic Steel Sheet Flipper & Upender
Industrial-grade steel sheet flipper and upender machine for rotating up to 12T loads between vertical and horizontal positions. Features hydraulic cylinders, adjustable speed, and safety mechanisms for smooth, reliable operation.
Key Specifications
Custom Engineering Available
Need modifications? Our team can tailor this solution to your specific requirements.
Product Description
A Heavy Capacity Hydraulic Steel Sheet Flipper is designed and manufactured to rotate up to 12T steel sheets from vertical to horizontal or horizontal to vertical positions. It ensures safety, even transition, and smooth operation during tilting with durable acting hydraulic cylinders.
This machine is equipped with two working tables for 90-degree turning, a heavy-duty structure for long life, and a quality hydraulic system with cylinder synchronization. It offers adjustable turning speed, mechanical and electric stop blocks for safety, and options for control panel or remote operation. Automatic stop and pressure-keeping at any angle, along with smooth, accurate, vibration-free motion, enhance efficiency and reliability.
Key specifications include a maximum pressure of 15Mpa (with a maximum allowance of 20Mpa), double-acting hydraulic cylinders, and loading via fork lift, crane, or hoist. The control system features a pedestal-mounted hydraulic power unit, automatic position lock-up, and soft reset for accident power-off. Working tables measure 500x1800 mm each, and a soft cover shield provides operation protection.
Key Benefits
- Two working tables for 90-degree turning of steel sheets
- Heavy-duty structure designed for long life and durability
- Quality hydraulic system with cylinder synchronization device
- Adjustable turning speed for flexible operation control
- Mechanical and electric stop blocks for enhanced safety
- Control panel or remote operation options for convenience
- Automatic stop with pressure-keeping at any angle
- Smooth, accurate, and vibration-free motion during operation
- Double-acting hydraulic cylinders for reliable actuation
- Automatic position lock-up and soft reset for power-off accidents
- Soft cover shield for operator protection during use

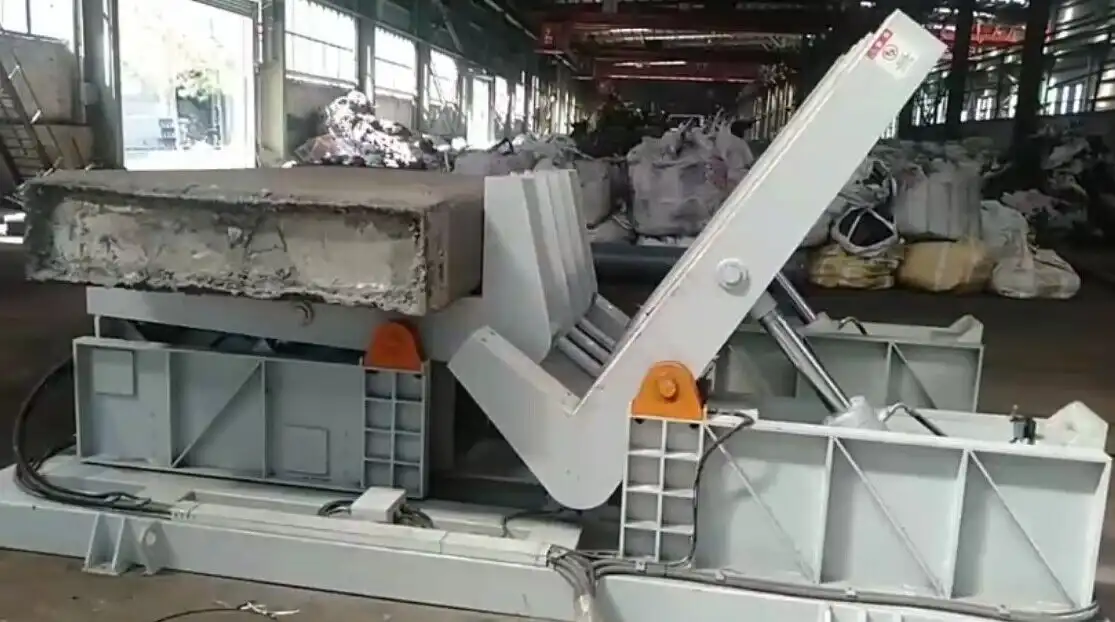

Heavy-Duty Hydraulic Steel Sheet Flipper & Upender Video
Watch our product demonstration to see the machine in action. Discover how it can improve your production efficiency and packaging quality.

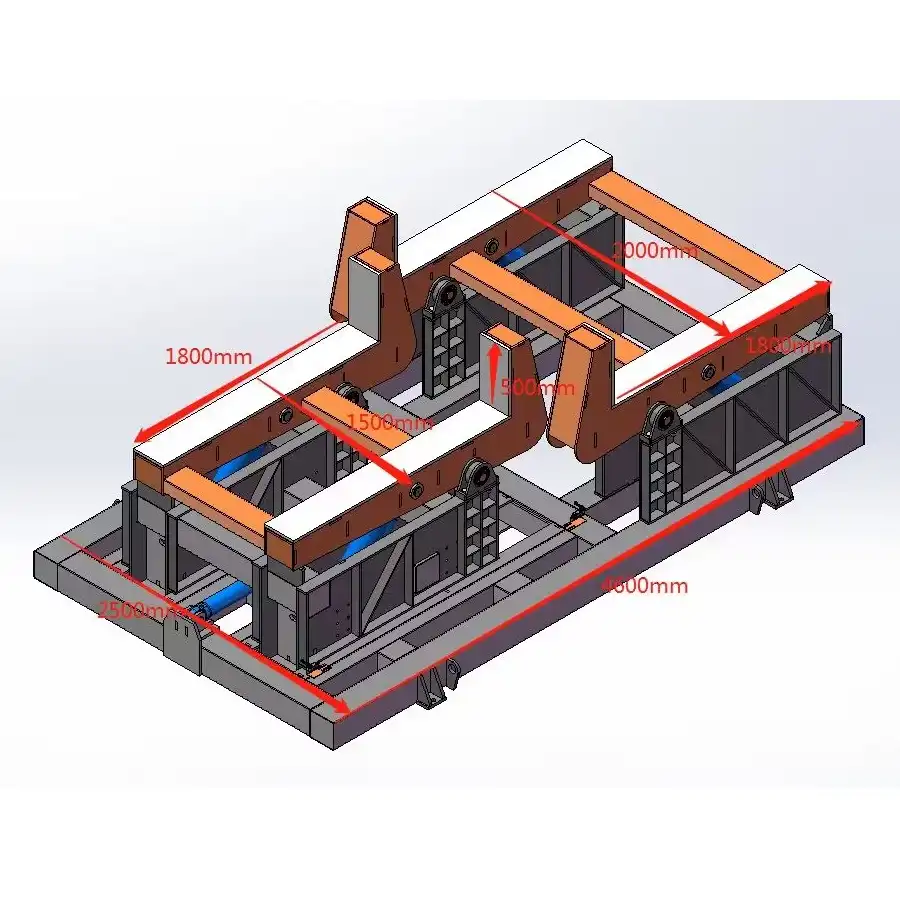

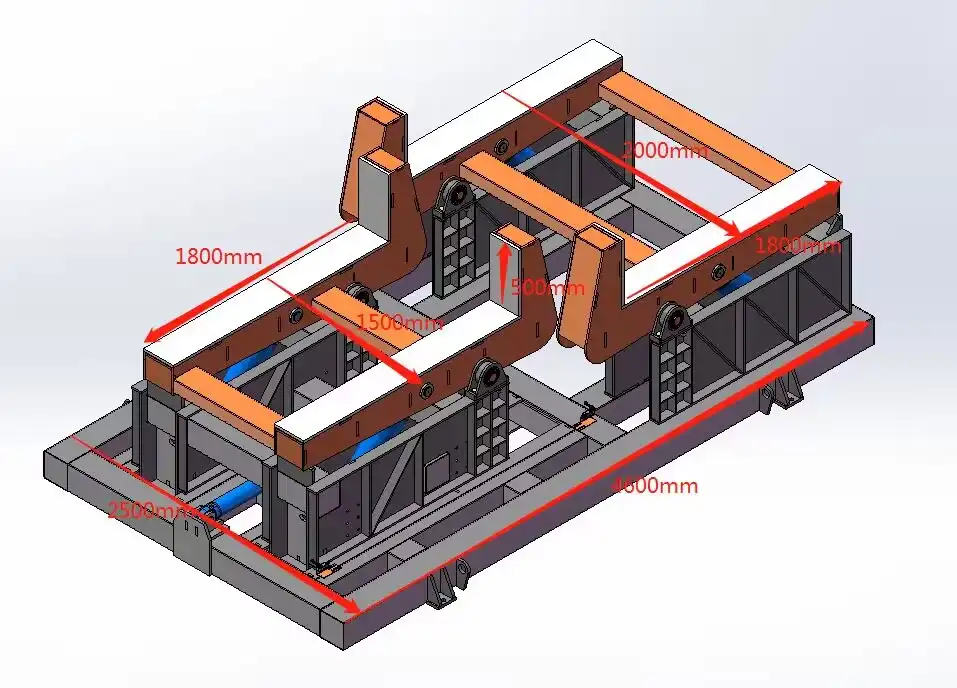

Technical Specifications
| Specification | Value |
|---|---|
| Dimension L | 4600 mm |
| Dimension W | 2500 mm |
| Dimension H | 1400 mm |
| Max Flipping Load | 12 ton |
| Motor Output | 8.0 kW |
| Oil Reservoir | 60 Liter |
| Steel Thickness Range | 50-300 mm |
| Steel Size Range | 1800x2500-2800 mm |
| Max Pressure | 15Mpa |
| Max Allowance Pressure | 20Mpa |
| Working Table Size A | 500x1800 mm |
| Working Table Size B | 500x1800 mm |
| Loading Method | Fork lift, crane, or hoist |
Frequently Asked Questions
Common questions about Heavy-Duty Hydraulic Steel Sheet Flipper & Upender and our services.
Q:What is the maximum weight capacity of this steel sheet flipper machine?
Q:What are the dimensions of the steel sheets this machine can process?
Q:How does the machine ensure safety during operation?
Q:What power supply is required for this flipper machine?
Q:Can the turning speed be adjusted on this machine?
