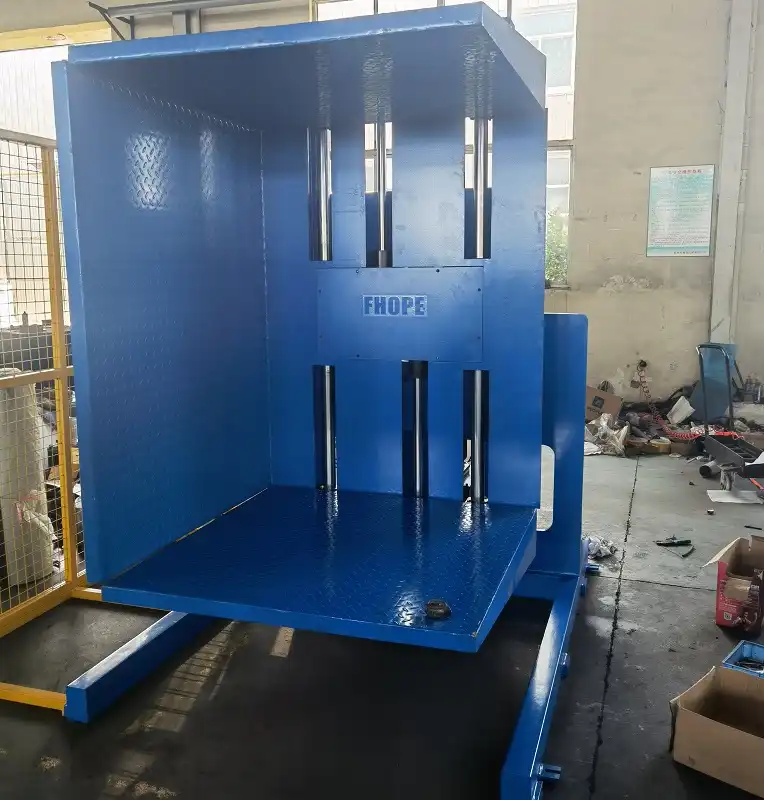

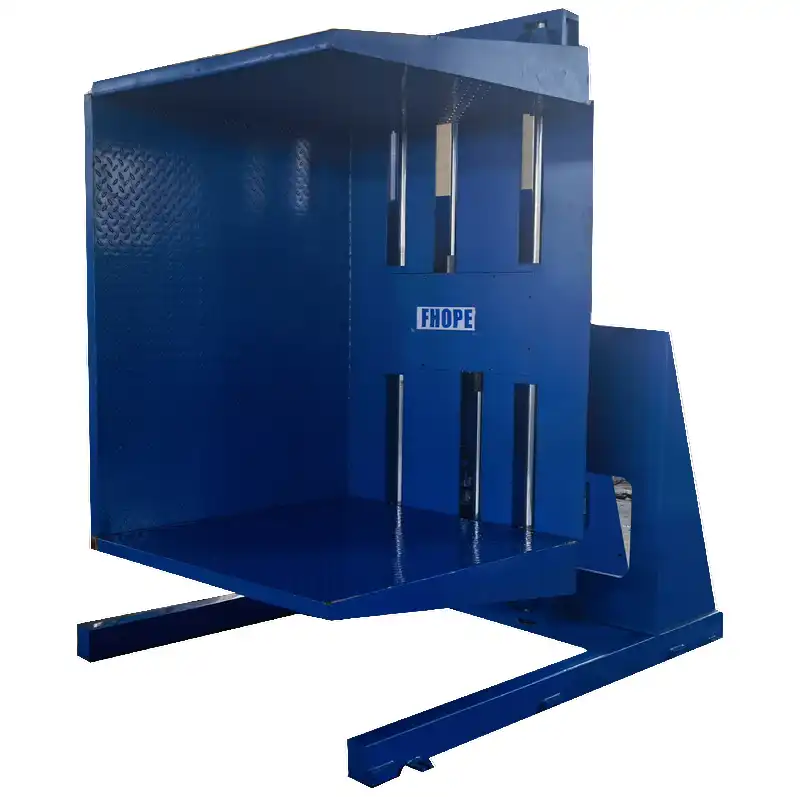

Heavy-Duty 2-Ton Pallet Inverter with Dual Clamp System

Name: Heavy-Duty 2-Ton Pallet Inverter with Dual Clamp System
Brand: Industrial Solutions
SKU: 1028
Availability: InStock

Model:1028

Discover our 180° pallet inverter with two clampers, designed for heavy loading up to 2T. Ideal for food, pharma, and manufacturing industries, it ensures safe product handling and efficient pallet rotation.

Key Specifications

Turnover Capacity:2.0 T

Motor Power:Approx. 5.5 KW

Power Supply:380V, 50/60Hz, 3-phase

Model:FPFZ-C02

Specifications:Length (1000-1200) x Width (1000-1200) mm

Custom Engineering Available

Need modifications? Our team can tailor this solution to your specific requirements.

Product Description

This 180° pallet inverter includes two clampers for securely holding pallet loads from 800-1800mm, designed for heavy loading up to 2T. It allows for pallet loading and unloading by forklift, and by inverting the product 180 degrees, the pallet can be changed from the top side.

Two-clamper pallet inverters are engineered to grip the pallet from both sides and rotate it 180 degrees, effectively turning the pallet and its load upside down.

This type of pallet inverter is commonly used in industries such as food and beverage, pharmaceuticals, and manufacturing, where products need to be flipped for storage, transportation, or processing. It helps reduce the risk of injury and product damage during handling and is designed to accommodate a range of pallet sizes and weights.

Key Benefits

Two clampers for secure gripping and 180° rotation
Heavy loading capacity up to 2T for industrial applications
Suitable for pallet loads from 800-1800mm height
Reduces injury risk and product damage during handling
Compatible with various pallet sizes and weights

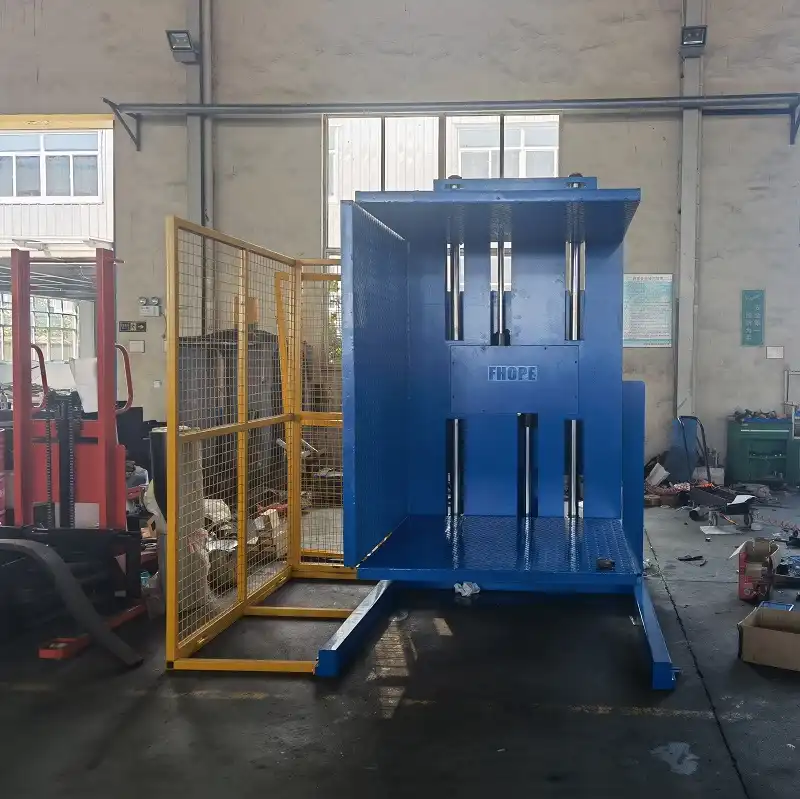

Heavy-Duty 2-Ton Pallet Inverter with Dual Clamp System Video

Watch our product demonstration to see the machine in action. Discover how it can improve your production efficiency and packaging quality.

Technical Specifications

Specification	Value
Height	800-1800 mm
Turnover Time	Approx. 25-35 seconds
Turnover Angle	180°
Turnover Body Base Profile Welding	A3 Steel
Fixed Mode	By bolt
Operation	Panel control / Wireless Remote Control
Machine Size	Approx. L2200mm x W1450mm x H2000mm

Frequently Asked Questions

Common questions about Heavy-Duty 2-Ton Pallet Inverter with Dual Clamp System and our services.

Q:What is the maximum load capacity of this pallet inverter?

This pallet inverter has a turnover capacity of up to 2.0 tons, making it suitable for heavy-duty industrial applications.

Q:What industries is this pallet inverter designed for?

It is ideal for industries such as food and beverage, pharmaceuticals, and manufacturing, where products need to be flipped for storage, transportation, or processing.

Q:How does the two-clamper design enhance safety?

The two-clamper design securely grips the pallet from both sides during rotation, reducing the risk of injury and product damage by ensuring stable handling.
