180° Pallet Inverter

Name: 180° Pallet Inverter
Brand: Industrial Solutions
SKU: 581
Availability: InStock

Model:581

The 180° Pallet Inverter and pallet exchanger streamlines pallet-less loading, enabling in-house pallet retention and rapid container loading. Ideal for manual unloading destinations.

Key Specifications

Turnover Capacity:Max. 1.2T

Motor Power:Approx. 2.2 KW

Power Supply:380V, 50Hz (Three-phase five-wire system)

Model:FPFZ-1

Specifications:L1200mm x W1100-1200mm x H1200-2000mm

Custom Engineering Available

Need modifications? Our team can tailor this solution to your specific requirements.

Product Description

The 180° Pallet Inverter forms a natural element in any pallet-less loading system. By inverting the product 180 degrees, you can retain your own pallets in-house and load containers in double-quick time. An ideal system for product which will be hand-balled out at its destination.

Key Benefits

Well-known brands adopted for main components
Prevents manual stacking of goods effectively
Adjustable pressing device for different package sizes
Strong structure and durable design
Separate electrical box for safer operation and testing
Adjustable turning speed
Automatic start and stop
Stop block with mechanical and electric safety features
Control panel or remote operation
Steady, accurate, and vibration-free motion

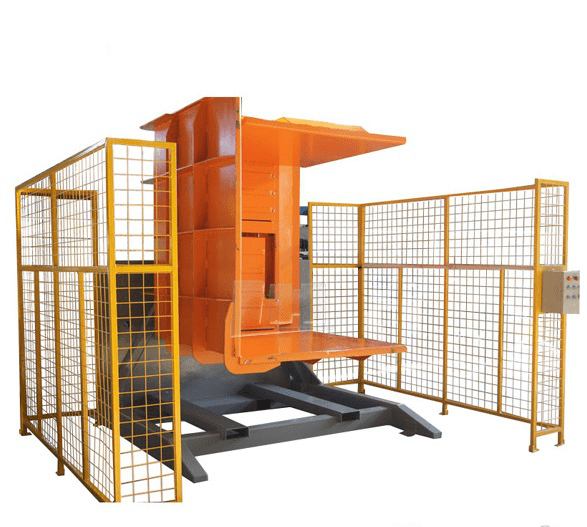

180° Pallet Inverter Video

Watch our product demonstration to see the machine in action. Discover how it can improve your production efficiency and packaging quality.

Technical Specifications

Specification	Value
Turnover Time	Approx. 50 seconds
Turnover Angle	180°
Turnover Body Base	Profile Welding
Fixed Mode	Dead Weight
Operation Mode	Wireless Remote Control

Frequently Asked Questions

Common questions about 180° Pallet Inverter and our services.

Q:What is the primary benefit of using the 180° Pallet Inverter?

It allows for efficient pallet-less loading by inverting products 180 degrees, enabling in-house pallet retention and faster container loading, especially useful for destinations where products are manually unloaded.

Q:What safety features are included in the pallet inverter?

The inverter includes a separate electrical box for safer operation and testing, an adjustable stop block with mechanical and electric safety mechanisms, and steady, vibration-free motion to ensure secure handling.
