FPS-300H Light Hose Coil Packing Machine

Name: FPS-300H Light Hose Coil Packing Machine
Brand: Industrial Solutions
SKU: 242
Availability: InStock

Model:242

Discover the FPS-300H hose coil packing machine, ideal for PVC and rubber hoses. Features tension control, 60-90 coils/hour speed, and customizable options for storage and shipping.

Key Specifications

Width:120～300mm

Weight:10-50kg

Main Wrapping Speed:20-35sec/pcs

Max Speed of Ring:100r/Minute

Power Supply:380V 60Hz 3P

Power Consumption:1.2Kw

Custom Engineering Available

Need modifications? Our team can tailor this solution to your specific requirements.

Product Description

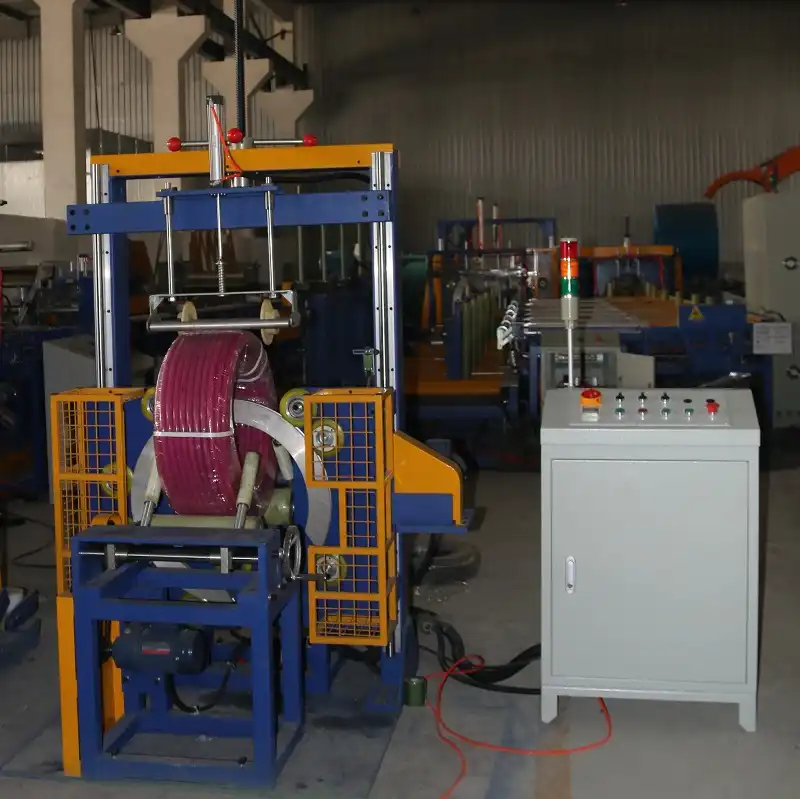

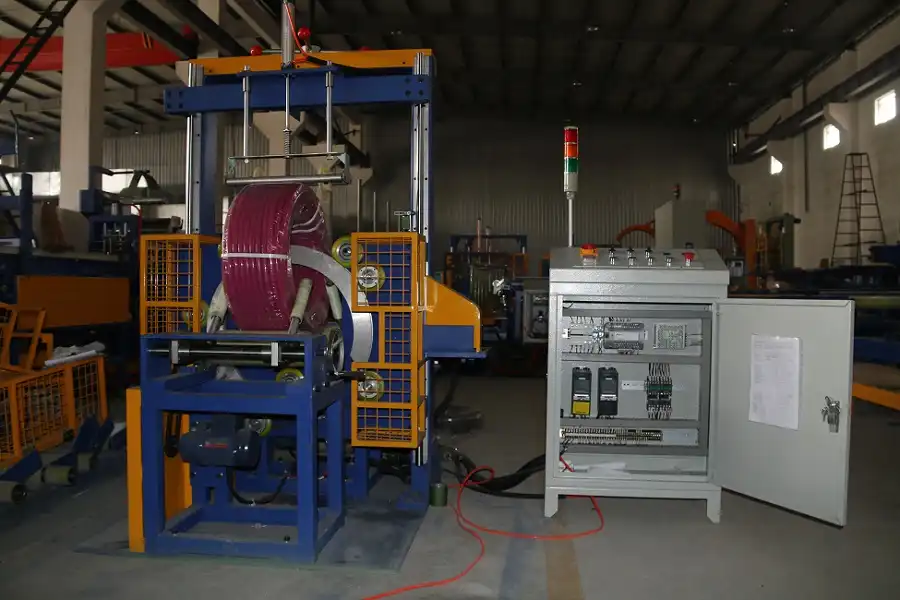

The FPS-300H hose coil packing machine is an industrial solution designed for wrapping flexible hose coils with packing material, ensuring organized storage and efficient shipping.

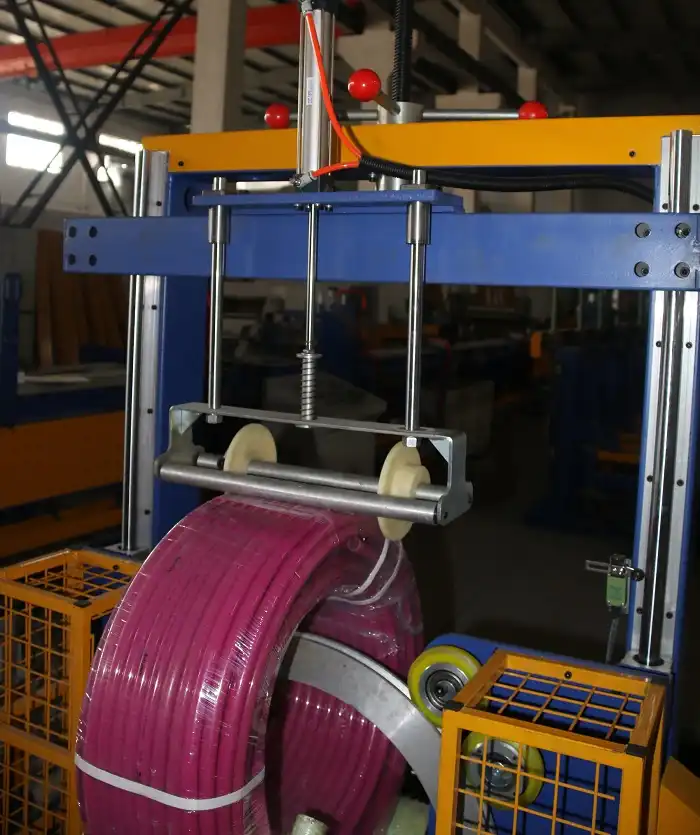

This machine utilizes a motorized system to rotate the hose while applying a layer of plastic film or tape, with features like a tension controller and press-down device for stable wrapping of light and small PE hose coils.

With a loading height of 850mm for manual operation, it prevents coil shaking and supports proper friction during turning, achieving packing speeds of 60-90 coils per hour and handling weights up to 50kg.

Key Benefits

Motorized system for rotating and wrapping hose coils with plastic film or tape
Equipped with tension controller and press-down device for stable wrapping of light coils
Loading height of 850mm for manual loading and unloading operations
Packing speed of 60-90 coils per hour for efficient production
Customizable options available for special requirements

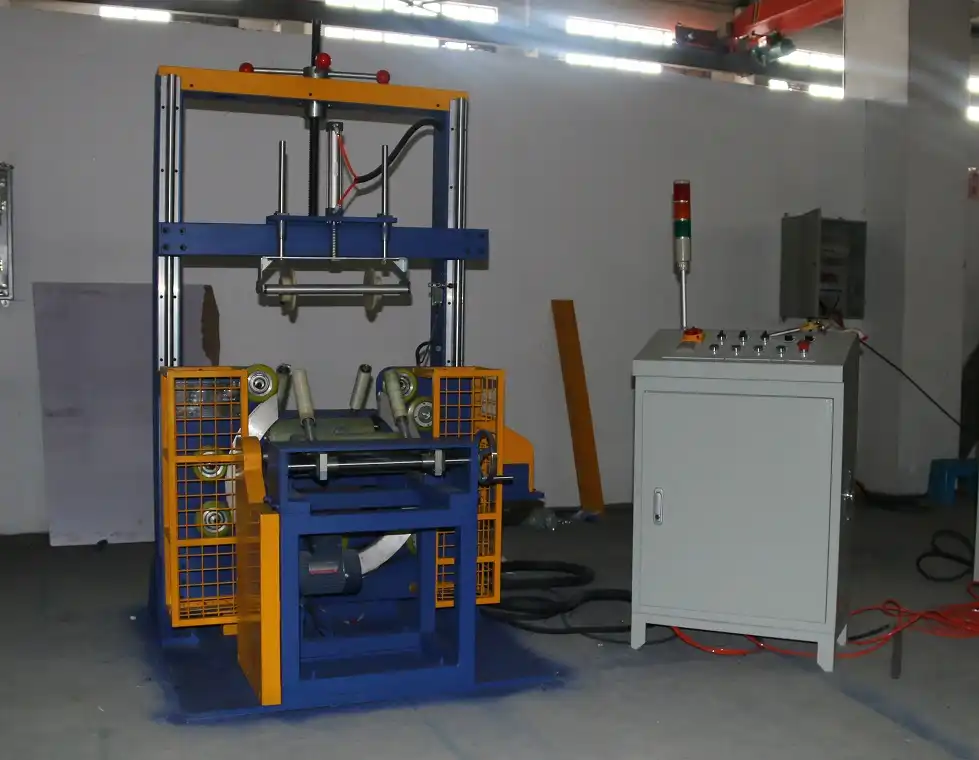

FPS-300H Light Hose Coil Packing Machine Video

Watch our product demonstration to see the machine in action. Discover how it can improve your production efficiency and packaging quality.

Technical Specifications

Specification	Value
Machine Model	FPS-300H
I D of Coil	Φ300～Φ600mm
O D of Coil	Φ500-Φ800mm
Packing Material	Stretch film: OD:100-160mm, ID:50mm, Width:90mm; Paper (optional)
Special Requirement	Customized available

Frequently Asked Questions

Common questions about FPS-300H Light Hose Coil Packing Machine and our services.

Q:What types of hoses can the FPS-300H machine handle?

The FPS-300H is designed for flexible hoses such as PVC and rubber coils, particularly suitable for light and small PE hose coils, with coil IDs from Φ300 to Φ600mm and ODs from Φ500 to Φ800mm.

Q:What is the packing speed of this machine?

This machine achieves a packing speed of 60-90 coils per hour, with a main wrapping speed of 20-35 seconds per piece, making it efficient for industrial packaging needs.

Q:Can the machine be customized for specific requirements?

Yes, the FPS-300H offers customizable options for special requirements, allowing adaptations to meet unique packaging or operational needs in various industrial settings.
