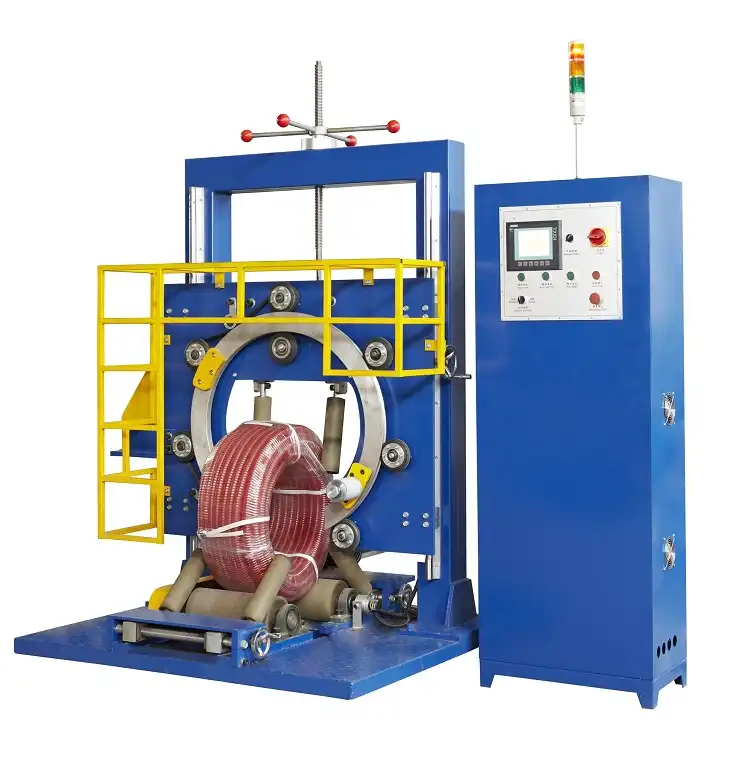

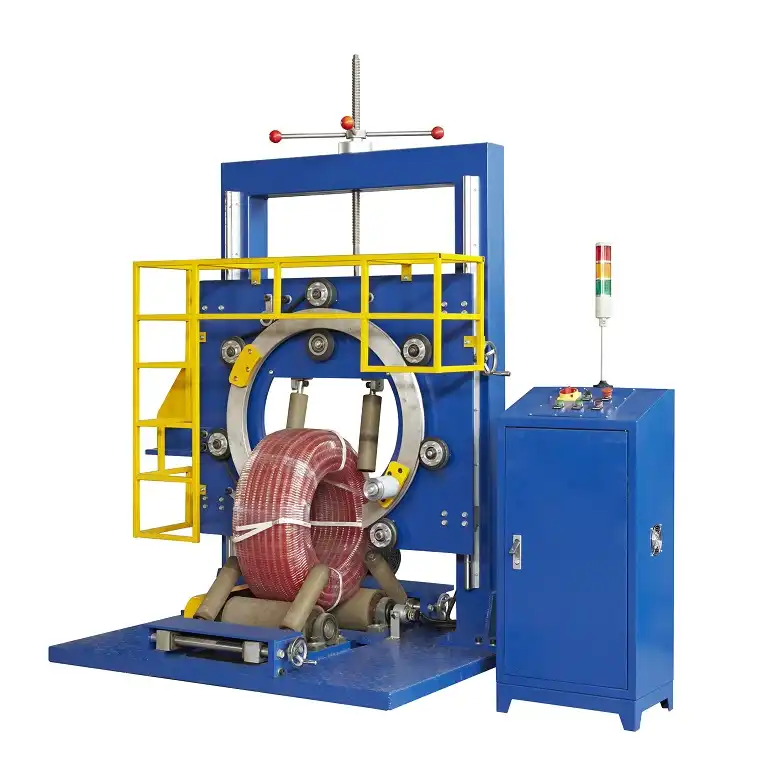

FPH-300N Automated Hose Coil Wrapping Machine
Discover the FPH-300N hose coil film wrapper, designed for efficient wrapping of hose reels and plastic tubes. Features adjustable speed, safety guardrails, and customizable options to save labor and material costs.
Key Specifications
Custom Engineering Available
Need modifications? Our team can tailor this solution to your specific requirements.
Product Description
The FPH-300N is a machine used to wrap hose coils with film. It is suitable for wrapping hose reels and plastic tubes.
By 120R ring speed, it has high efficiency and provides good packaging for saving labor and material costs. This version uses a vertical packing method to wrap small and light corrugated hose coils. The hose coils are wrapped around the coil from inside to outside by overlapping.
The hose wrapping machine is highly flexible and adjustable. It offers both manual and automatic operations and allows for customization of speed, overlap rate, and wrapping tension.
It also has safety features to protect the hose coils. With a fast wrapping speed, it can efficiently package hose coils at a high throughput.
Key Benefits
- Supports various packing materials such as film, with material selection based on requirements.
- Includes a reset function for convenient and fast changeovers between different hose coils.
- Operates in both manual and automatic modes for flexible use.
- Speed can be adjusted via a frequency converter for optimized performance.
- Overlap rate of the wrapping can be set from 10% to 90% as needed.
- Features a safety guardrail to protect hose coils from damage during operation.
- Equipped with a special brake design for smooth and reliable operation.
- Wrapping tension is adjustable to ensure secure packaging.
- Wraps hose coils at an average speed of 20 to 35 seconds per coil for high throughput.

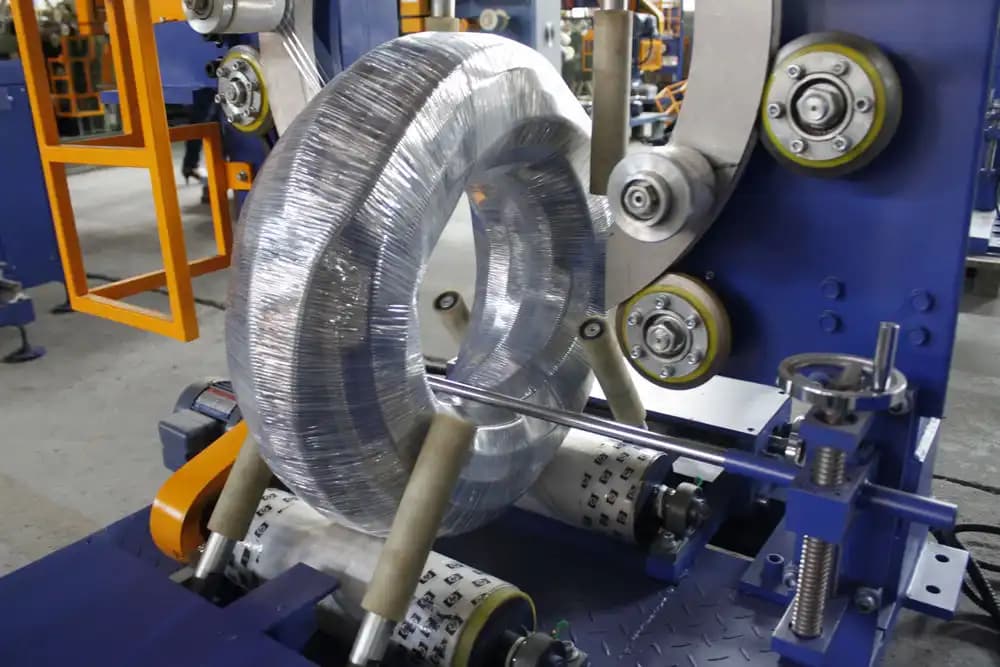

FPH-300N Automated Hose Coil Wrapping Machine Video
Watch our product demonstration to see the machine in action. Discover how it can improve your production efficiency and packaging quality.
Technical Specifications
| Specification | Value |
|---|---|
| Machine Model | FPH-300N |
| I D of Coil | Φ300～Φ700mm |
| O D of Coil | Φ500-Φ1000mm |
| Packing Material | Stretch film: OD:100-180mm, ID:50mm, Width:90-100mm; Paper/HDPE (optional) |
| Special Requirement | Customized available |
Frequently Asked Questions
Common questions about FPH-300N Automated Hose Coil Wrapping Machine and our services.
Q:What types of materials can the FPH-300N hose coil film wrapper use?
Q:How fast does the FPH-300N wrap hose coils?
Q:What safety features are included in the FPH-300N?
