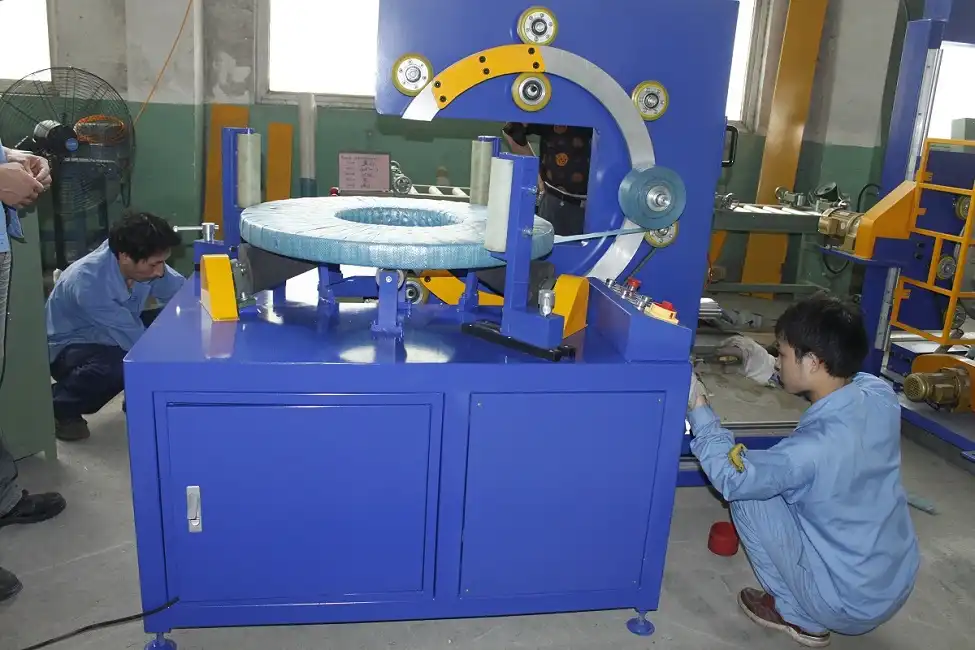

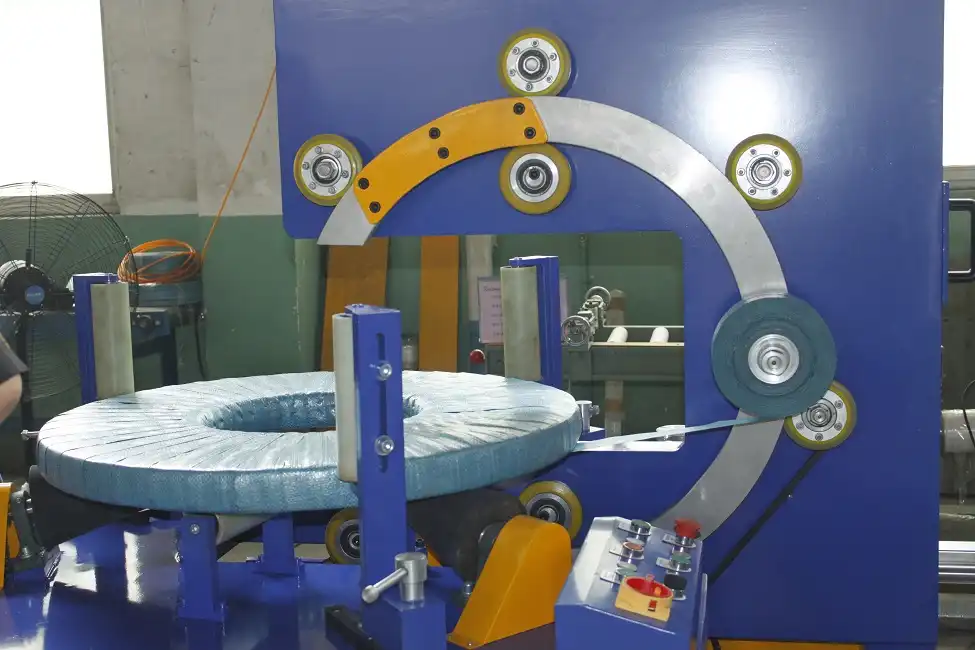

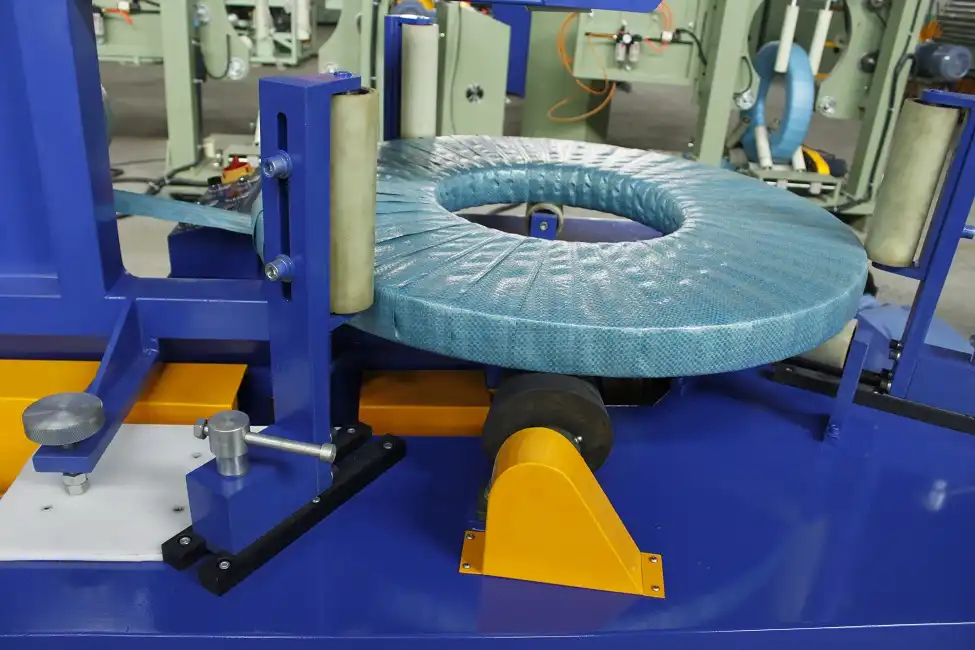

FPCA-200 Horizontal Hose Coil Wrapping Machine - View 1

1 / 5

Tap thumbnails to view different images

Hose packaging machine

FPCA-200 Horizontal Hose Coil Wrapping Machine

Name: FPCA-200 Horizontal Hose Coil Wrapping Machine
Brand: Industrial Solutions
SKU: 240
Availability: InStock

Model:240

High-quality PE corrugated hose coil wrapping machine for secure packaging with stretch film. Features semi-automatic operation, customizable versions, and reliable performance. Ideal for industrial coil packing.

Key Specifications

Width:150～300mm

Weight:10-50kg

Main Wrapping Speed ( High/ Low):25-35sec/pcs

Max Speed of Ring:100r/Minute

Power Supply:380V 60Hz 3P

Power Consumption:2.0Kw

Custom Engineering Available

Need modifications? Our team can tailor this solution to your specific requirements.

Product Description

The PE Corrugated Hose Coil Wrapping Machine is designed for efficient and secure packaging of hose coils using stretch film, ensuring a nice sealed package. It features an eye-through type packing system for optimal sealing and protection.

This standard type machine is built for bulk production with stable quality, offering long service life and minimal maintenance requirements. Different semi-automatic versions are available to accommodate various coil sizes, weights, and packaging materials, providing flexibility for diverse industrial needs.

Manufactured by an ISO9001:2000 and CE certified company with over 18 years of experience in coil packing, this machine delivers reliable and high-quality performance. Custom-built options are available to meet specific requirements, backed by updated and timely technical support for easy operation and durability.

Key Benefits

Eye-through type packing with stretch film for secure hose coil sealing
Semi-automatic operation with versions customizable for different coil sizes and weights
Long service life with minimal maintenance requirements
Includes all switchgear, isolation transformer, control hardware, and field wiring
ISO9001:2000 and CE certified manufacturer with over 18 years of experience
Custom-built machines available with reliable technical support

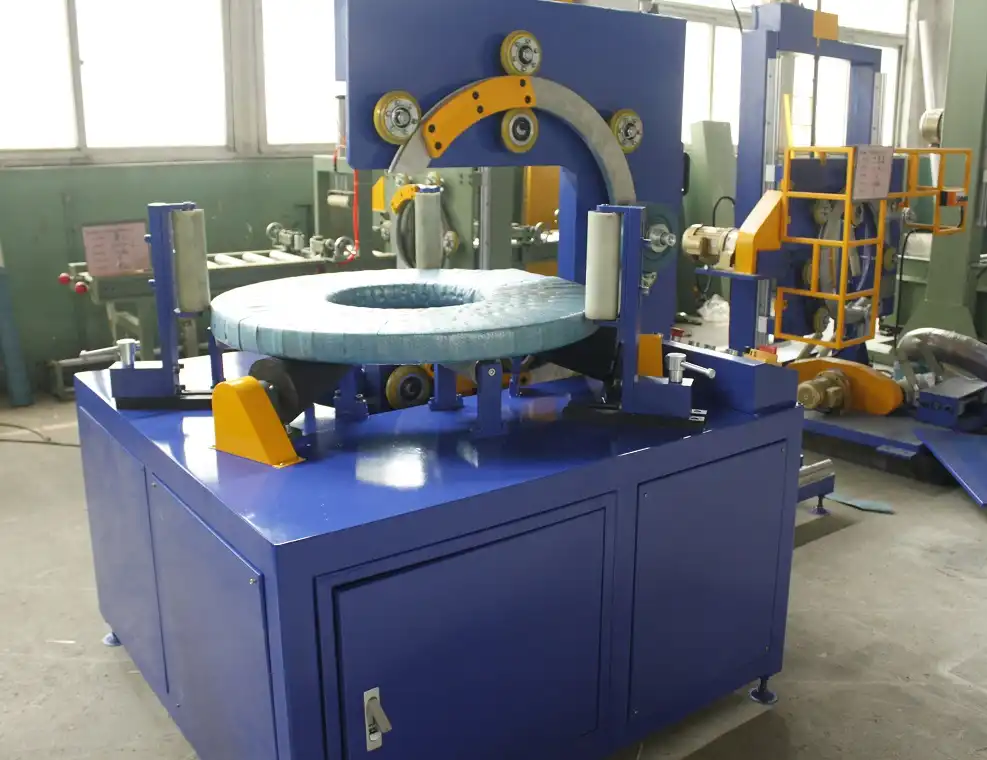

FPCA-200 Horizontal Hose Coil Wrapping Machine Video

Watch our product demonstration to see the machine in action. Discover how it can improve your production efficiency and packaging quality.

Technical Specifications

Specification	Value
Machine Model	FPCA-200
I D of Coil	Φ200～Φ350mm
O D of Coil	Φ500-Φ650mm
Packing Material	Stretch film: OD:100-140mm, ID:50mm, Width:90mm; Paper (optional): OD:100-450mm, ID:50mm, Width:90mm
Special Requirement	Customized available

Frequently Asked Questions

Common questions about FPCA-200 Horizontal Hose Coil Wrapping Machine and our services.

Q:What is the main application of this PE corrugated hose coil wrapping machine?

This machine is designed for wrapping PE corrugated hose coils with stretch film to create secure and sealed packages, ideal for industrial packaging and storage.

Q:Can this machine handle different coil sizes and weights?

Yes, it offers semi-automatic versions customizable for various coil sizes, weights, and packaging materials, with specifications such as ID from Φ200 to Φ350mm and weight from 10 to 50kg.

Q:What are the power requirements for this machine?

It requires a power supply of 380V 60Hz 3P, with a power consumption of 2.0Kw, ensuring efficient operation in industrial settings.

Q:Is technical support available for this machine?

Yes, the manufacturer provides updated and timely technical support, backed by over 18 years of experience and certifications like ISO9001:2000 and CE.
