FPCA-100 Horizontal Hose Coil Packing Machine

Name: FPCA-100 Horizontal Hose Coil Packing Machine
Brand: Industrial Solutions
SKU: 232
Availability: InStock

Model:232

Efficient corrugated hose and pipe packing wrapping machine for 360-degree coil wrapping. Features PLC control, adjustable speed, and customizable options for industrial packaging needs.

Key Specifications

Width:50-200 mm

Weight:5-50 kg

Main Wrapping Speed ( High/ Low):25-35 sec/pcs

Max Speed of Ring:100 r/Minute

Power Supply:380V 60Hz 3P

Power Consumption:1.5 kW

Custom Engineering Available

Need modifications? Our team can tailor this solution to your specific requirements.

Product Description

The hose wrapping machine is designed to rotate coils 360 degrees and wrap them with film fixed on a ring, providing secure and efficient packaging for industrial applications.

It offers both manual and automatic working modes, with features like adjustable speed, safety guardrails, and customizable options to meet specific requirements.

This machine is ideal for packaging coils of various sizes, ensuring consistent tension and reliable performance in manufacturing environments.

Key Benefits

PLC and HMI control with automatic material calculation (optional) for precise operation
Easy manual loading and unloading with special design for user convenience
Adjustable ring and roller speed via converters for flexible packaging control
Safety features including guardrails, soft start/stop, and overcurrent protection
Wide compatibility with packing materials like stretch film and optional paper
Consistent tension device for packaging coils from small to large sizes
Horizontal coil packaging with adjustable packaging tension for optimal results
Customizable options including logo circle tapping and special requirements

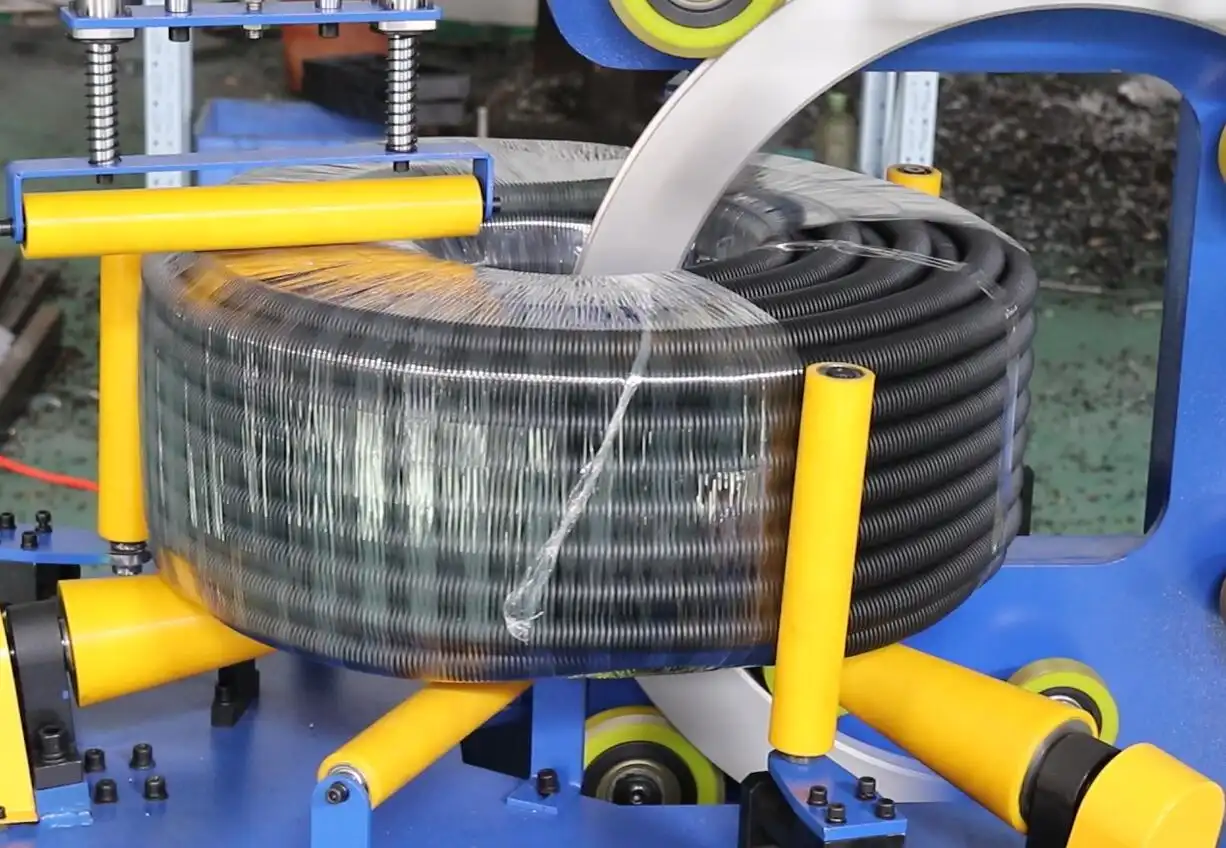

FPCA-100 Horizontal Hose Coil Packing Machine Video

Watch our product demonstration to see the machine in action. Discover how it can improve your production efficiency and packaging quality.

Technical Specifications

Specification	Value
Machine Model	FPCA-100
I D of Coil	Φ150-Φ350 mm
O D of Coil	Φ300-Φ500 mm
Packing Material	Stretch film: OD 100-150 mm, ID 50 mm, Width 50-70 mm; Paper (optional)
Special Requirement	Customized available

Frequently Asked Questions

Common questions about FPCA-100 Horizontal Hose Coil Packing Machine and our services.

Q:What types of coils can this wrapping machine handle?

This machine is designed to handle coils with an inner diameter (ID) of Φ150-Φ350 mm, outer diameter (OD) of Φ300-Φ500 mm, width of 50-200 mm, and weight of 5-50 kg, making it suitable for a range of industrial packaging needs.

Q:Is the machine customizable to specific requirements?

Yes, the machine can be customized according to your specifications, including optional features like PLC control, logo circle tapping, and adjustments for different coil sizes or packaging materials.

Q:What safety features are included in the wrapping machine?

Safety features include guardrails, soft start and stop functions, overcurrent protection for the driving motor, and adjustable tension devices to ensure safe and reliable operation during packaging processes.
