L-Bar Shrink Wrap Machine

FP-400LA+SH-450C L-Bar Sealing and Shrinking Machine

Model:673

Discover the FP-400LA+SH-450C fully automatic L-bar sealing shrinking packing machine for high-efficiency B2B production lines. Features include automatic film feeding, adjustable settings, and safety functions.

Key Specifications

Power Supply:380V/50-60Hz/3phase
Packing Capacity:10-25 packs per minute (depends on product size)
Packing Width:≤350 mm
Power Consumption:1.5kW
Weight:390kg

Custom Engineering Available

Need modifications? Our team can tailor this solution to your specific requirements.

Product Description

The FP-400LA+SH-450C is a fully automatic unmanned L-bar sealing shrinking packing machine designed for mass production packaging lines. It offers high efficiency with automatic film feeding, a punch device guide, and manual membrane system adjustment to accommodate products of varying widths and heights. This machine includes a sealing joint function, making it ideal for small product packaging, and eliminates the need for mold or bag-making device changes when package sizes vary.

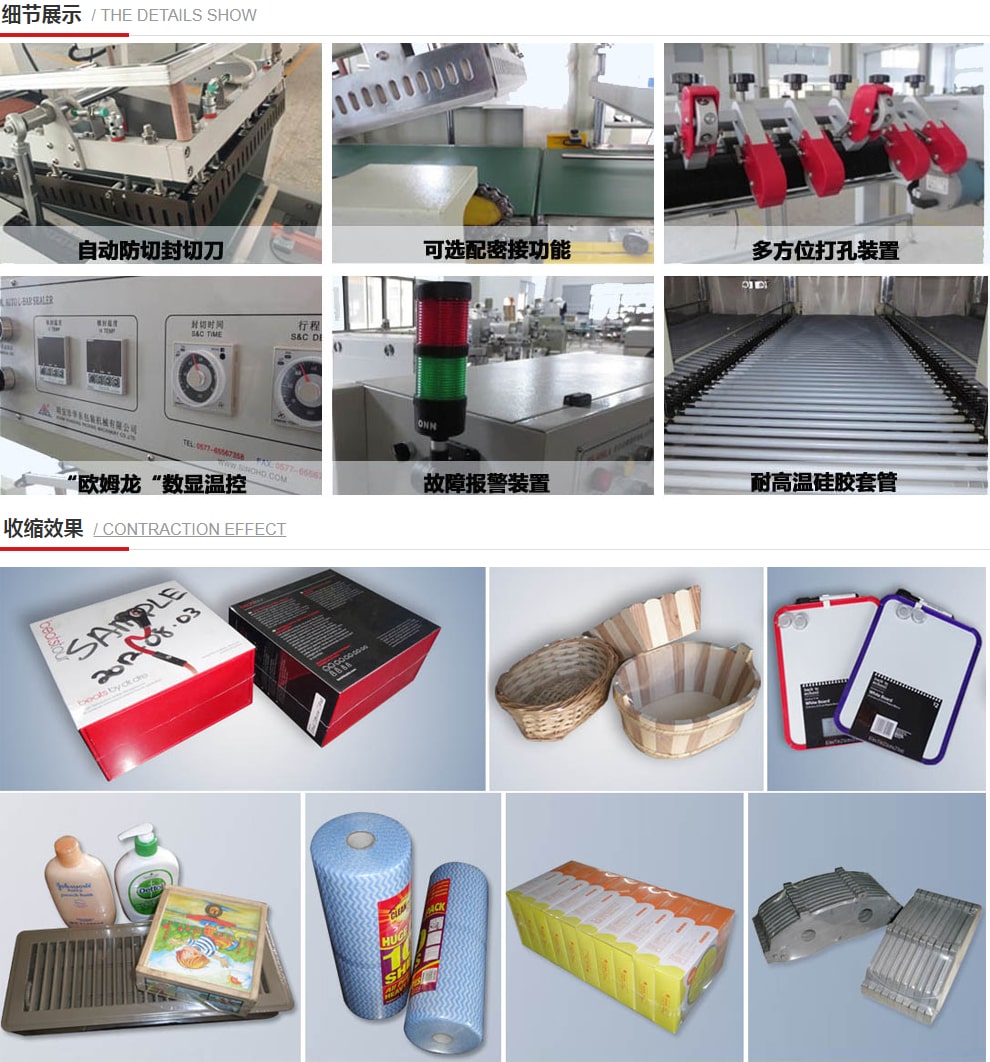

Key Benefits

  • Dupont Teflon coating and high-temperature-resistant aluminum alloy knife for anti-adhesion and durability
  • Import inspection photoelectric system for easy sealing and packaging of thin and small goods
  • Automatic feeding system with induction motor and automatic waste winding for efficient operation
  • Omron digital display temperature controller for sensitive, accurate, and settable sealing temperatures
  • Sealing knife with automatic protection and alarm functions to enhance operator safety
  • Compatible with unmanned production line operation for seamless integration

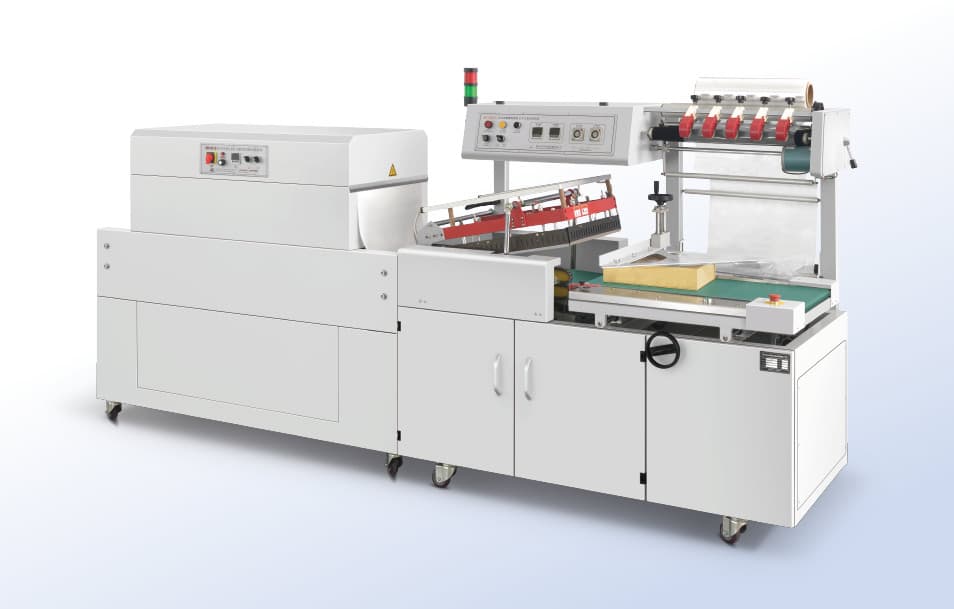

FP-400LA+SH-450C L-Bar Sealing and Shrinking Machine Video

Watch our product demonstration to see the machine in action. Discover how it can improve your production efficiency and packaging quality.

Technical Specifications

SpecificationValue
Sealing TypeL-bar sealing
Sealing Height≤125 mm

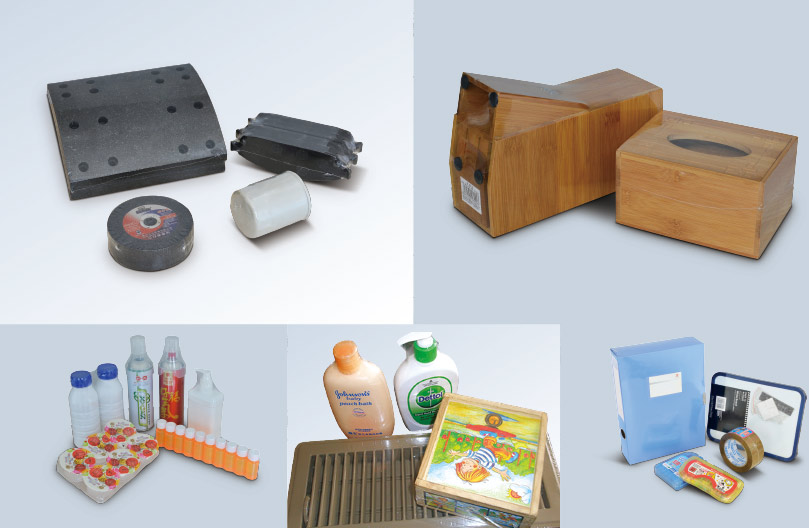

Product Sizewidth+height≤400 mm, length+height≤480 mm
Film TypeCenter-folded polyolefin (POF) film
Max Film Size530mm(width)x280mm(outer diameter)
Working Height780-850 mm
Air Pressure≤0.5MPa (5 bar)
Sealing SystemSpecial durable alloyed sealing knife with anti-stick Teflon coats
Machine MaterialCarbon steel

Frequently Asked Questions

Common questions about FP-400LA+SH-450C L-Bar Sealing and Shrinking Machine and our services.

Q:What is the sealing type of this shrinking packing machine?

This machine uses an L-bar sealing type for efficient and secure packaging.

Q:Can this machine handle different product sizes without modifications?

Yes, it features manual adjustment of the membrane system and does not require mold or bag-making device changes when package sizes vary.

Q:What safety features are included?

It includes a sealing knife with automatic protection and alarm functions to enhance operator safety during operation.
