FP-250A Fully Automatic L-Bar Shrinking Machine
Discover the FP-250A full-automatic L-bar sealing machine with servo motor drive, ideal for mass production lines. Features include automatic film feeding, adjustable settings, and safety functions for reliable packaging.
Key Specifications
Custom Engineering Available
Need modifications? Our team can tailor this solution to your specific requirements.
Product Description
The FP-250A is a full-automatic L-bar type sealing machine designed for high-efficiency product packaging in mass production lines. It operates without manual intervention, utilizing a servo motor to drive the sealing cutter for optimal performance. Equipped with an automatic film-feeding and punching device, along with a manual film guide adjustment system, it ensures precise packaging. The machine includes a manually adjustable feeding platform to accommodate products of varying widths and heights, and it supports joint sealing for small packaging items. When product sizes change, operation is straightforward, eliminating the need for mold or bag maker device replacements.
Key Benefits

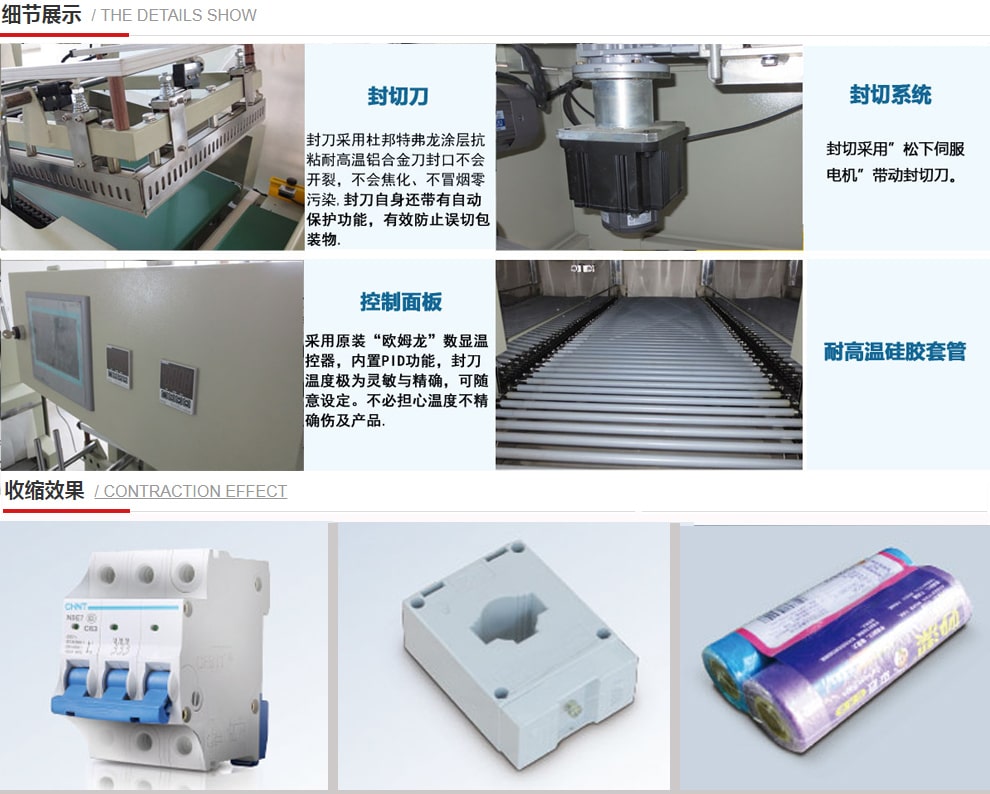

- Sealing knife with Dupont Teflon coating for anti-adhesion and high-temperature resistance, ensuring crack-free, smoke-free, and pollution-free seals.
- Equipped with import inspection photoelectric sensors for horizontal and vertical detection, enabling easy sealing of thin and small goods.
- Automatic feeding with length adjustment via electric eye and timer combination, plus an induction motor for automatic waste winding.
- Original Omron digital display temperature controller with PID function for sensitive and accurate temperature settings.
- Automatic protection and alarm functions to prevent cutting errors and enhance operator safety.
- Designed for integration with unmanned production line operations for seamless automation.
FP-250A Fully Automatic L-Bar Shrinking Machine Video
Watch our product demonstration to see the machine in action. Discover how it can improve your production efficiency and packaging quality.
Technical Specifications
| Specification | Value |
|---|---|
| Sealing Type | L-bar sealing |
| Sealing Height | ≤80 mm |
| Product Size | width+height≤250 mm, length+height≤330 mm |
| Film Type | center-folded polyolefin (POF) film |
| Max Film Size | 380mm (width) x 280mm (outer diameter) |
| Working Height | 780-850 mm |
| Oven Size | 1200(L) x 300(W) x 165(H) mm |
| Conveyor | chains with rotating silicon coated rods |
| Machine Material | carbon steel |
Frequently Asked Questions
Common questions about FP-250A Fully Automatic L-Bar Shrinking Machine and our services.
Q:What type of sealing does the FP-250A machine use?
Q:Is the FP-250A suitable for different product sizes?
Q:What safety features are included in the FP-250A?
