FCL-H600 Automatic Pipe Coiling and Packaging Machine
Discover the FCL-200 Automatic Coiler Machine for efficient packaging of PU and nylon air pipes. Features PLC control, adjustable coiling, and CE compliance for industrial use.
Key Specifications
Custom Engineering Available
Need modifications? Our team can tailor this solution to your specific requirements.
Product Description
The Automatic Coiler Machine FCL-200 is designed for the packaging of off-line pipes, including PU and nylon air pipes. It automates processes such as calculating tube length, cutting, coiling, PP binding, and shrink film packaging, all compliant with CE standards and utilizing the latest industrial technology.
This machine operates via a PLC control program, allowing for pre-set automated operations like pipe cutting, coiling, and fixed pipe ring energy. It ensures precision and reliability in industrial packaging applications.
Key Benefits
- PLC control program for automated operation and parameter setting
- Adjustable winding outer diameter and cutting length for customization
- Dual protection devices with screw fixation and movement
- Automatic failure detection with alarm system for reliability
- Special sensor for accurate pipeline positioning
- Compression device to maintain pipe stability during operation
- Graphic operator interface with touch screen and emergency switch
- Automatic label device for efficient packaging

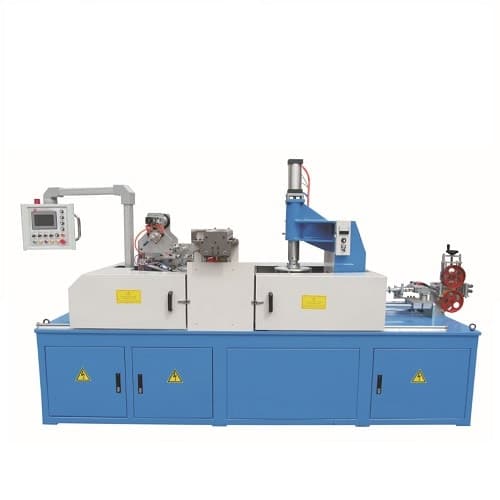

FCL-H600 Automatic Pipe Coiling and Packaging Machine Video
Watch our product demonstration to see the machine in action. Discover how it can improve your production efficiency and packaging quality.
Technical Specifications
| Specification | Value |
|---|---|
| Coil I D | 100-300 mm |
| Coil O D | 300-400 mm |
| Wire Reel Size | Outside diameter: 200-600 mm; Inside diameter: 180-250 mm; Height: 40-140 mm |
| Plastic Film Size | Thickness: 25 microm, Width: 50-70 mm |
| Plastic Film Loading | Pneumatic loading |
| Electric Loop Control | Mitsubishi micro-computer programme controller (PLC) |
| Operation Panel | Graphic operator interface with touch screen, speed button, and emergency switch |
Frequently Asked Questions
Common questions about FCL-H600 Automatic Pipe Coiling and Packaging Machine and our services.
Q:What types of pipes is the FCL-200 machine suitable for?
Q:How does the machine ensure operational reliability?
Q:Can the coiling dimensions be adjusted?
