FCL-H300 Automatic Pipe Coiling System
FCL-H300 automatic coiler and strapping machine for PU, nylon, PE pipes. Features PLC control, adjustable tension, and automated operations for efficient industrial coiling.
Key Specifications
Custom Engineering Available
Need modifications? Our team can tailor this solution to your specific requirements.
Product Description
The FCL-H300 automatic coiler and strapping machine is designed for winding nylon tubes, PU pipes, PE pipes, and other material pipes. It automatically rewinds air tubes from reels and connects to extruders for online coiling. After winding, coils move to the next station for binding, contracting, and piling, making it ideal for automated industrial applications.
This machine integrates a coiler and strapping machine, controlled by a PLC program for automated operations including tube cutting, coiling, and strapping. It supports automatic and manual modes, with features like tension control, sensor-based positioning, and error detection to ensure reliable performance in manufacturing environments.
Key Benefits
- Automated coiling and strapping for PU, nylon, and PE pipes
- PLC and HMI control system for programmable operations
- Adjustable tension and speed via inverter for precise coiling
- Automatic error detection and alarm system for safety
- Capable of continuous winding on two wheels with pneumatic discharge

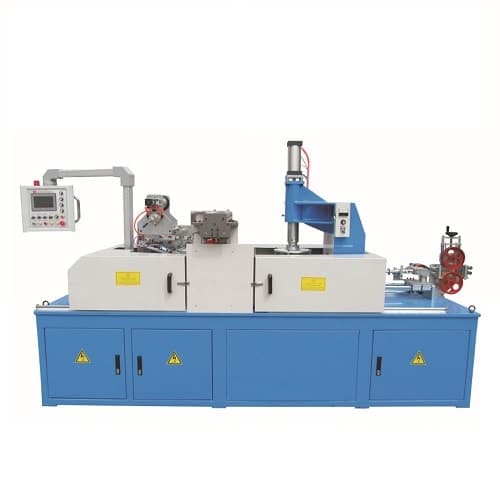

FCL-H300 Automatic Pipe Coiling System Video
Watch our product demonstration to see the machine in action. Discover how it can improve your production efficiency and packaging quality.
Technical Specifications
| Specification | Value |
|---|---|
| Model | FCL-H300 |
| Suitable Materials | Nylon tube, PU pipe, PE pipe |
| Power Supply | 380V 60Hz 3P |
| Strap Width | 10 mm |
| Strap Thickness | 0.8 mm |
| Strap Type | Polyester |
| Strap Quality | Smooth high-quality polyester strap |
| Joint Type | Friction-vibration |
| Joint Efficiency | Approx. 75-80% of strap breaking load |
Frequently Asked Questions
Common questions about FCL-H300 Automatic Pipe Coiling System and our services.
Q:What types of pipes can the FCL-H300 machine handle?
Q:How is the machine controlled and operated?
Q:What are the key features of the strapping function?
