Automatic Stretch Wrapping Machine B300
Boost packaging efficiency with the Automatic Pallet Stretch Wrapping Machine B300. Features PLC control, pre-stretch system, and up to 2000kg capacity for secure, automated pallet wrapping.
Key Specifications
Custom Engineering Available
Need modifications? Our team can tailor this solution to your specific requirements.
Product Description
The Automatic Pallet Stretch Wrapping Machine B300 is designed for high-efficiency, automated pallet packaging of items such as plastic containers, cases, cartons, and bags. It includes a film covering function to enhance protection and an automatic conveying system for increased productivity. With a PLC-controlled central system, it operates without manual assistance, offering reliable and consistent performance.
The machine features a motorized pre-stretch system that reduces film usage, and it can handle loads up to 2000kg. Optional infeed and outfeed conveyors streamline the packaging process, making it ideal for various industrial applications.
Key Benefits
- PLC-controlled central system for fully automated operation
- Motorized pre-stretch system reduces film consumption by up to 300%
- Film covering mechanism enhances package protection and appearance
- Heavy-duty construction supports loads up to 2000kg
- Adjustable wrapping layers from 0-99 winds for customizable packaging
Automatic Stretch Wrapping Machine B300 Video
Watch our product demonstration to see the machine in action. Discover how it can improve your production efficiency and packaging quality.
Technical Specifications
| Specification | Value |
|---|---|
| Working Mode | Automatic |
| Loads Per Hour | Minimum 24 |
| Wrapping Method | Bottom, middle, and top wrapping layers adjustable from 0-99 winds |
| Construction | Heavy duty, welded |
| Operator Interface | Separate buttons and HMI interface |
| Wrap Settings | Re-wrap function, overwrap and overlap adjustment |
| Wrap Counters | Independent top and bottom |
| Cycle Counters | Total cycle counter and resettable counter |
| Emergency Stop | Red mushroom head |
| Electrical Disconnect | Lockable |
| Electrical Enclosure | European approved |
| Film Specs ( L L D P E) | Thickness: 0.025mm, Length: 500m-1500m, Weight: 15kg |
| Film Delivery Type | Pre-stretch |
| Pre-stretch Level | 250% (optional 100% to 300%) |
| Load Height Sensor | Photocell sensor |
| Carriage System | Up and down adjustable by inverter; Speed: 2.9m/min |
| Film Threading | Jinglin design, W film threading pattern |
| Automatic Mechanical Hand System | Pneumatic film cutting and wiping system |
| Film Clamper Mode | Scissors-like gripper bars |
| Cutting Method | Instant heating wire |
| Wiping | Soft brush to stick film onto pallets |
| Turntable Drive Mode | Chain-drive |
| Bearing Type | Ring gear |
| Start & Stop Mode | Soft start and stop |
| Turntable Diameter | 2200mm |
| Turntable Height | Approximately 400mm |
| Rotating Speed | Maximum 12rpm (adjustable) |
| Reset | Automatic turntable reset |
| Voltage | AC 380V, 3 Phase, 50 Hz |
| Turntable Motor Power | Approximately 0.75kw |
| Roller Power | Approximately 0.75kw |
| Up-down Motor Power | Approximately 0.37kw |
| Pre-stretch Motor Power | Approximately 0.37kw |
| Air Supply | 6-8kgf/cm² |
| Air Consumption | Approximately 1000ml/min |
Frequently Asked Questions
Common questions about Automatic Stretch Wrapping Machine B300 and our services.
Q:What types of products can the Automatic Pallet Stretch Wrapping Machine B300 handle?
Q:How does the pre-stretch system benefit packaging operations?
Q:Is manual assistance required during operation?
Q:What are the optional features available for this machine?
Q:What safety features are included in the machine?
Related Products

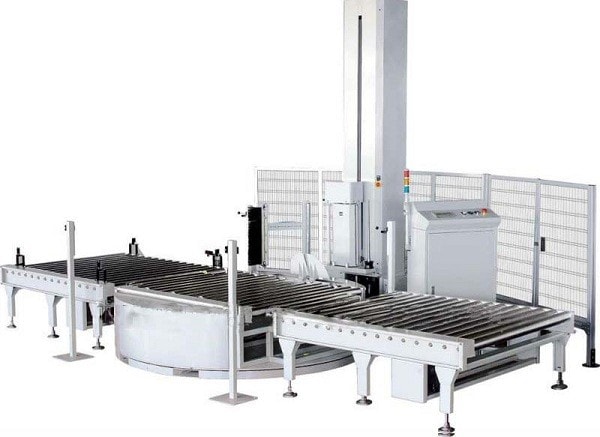

Automatic Stretch Wrapping Machine B200 Series

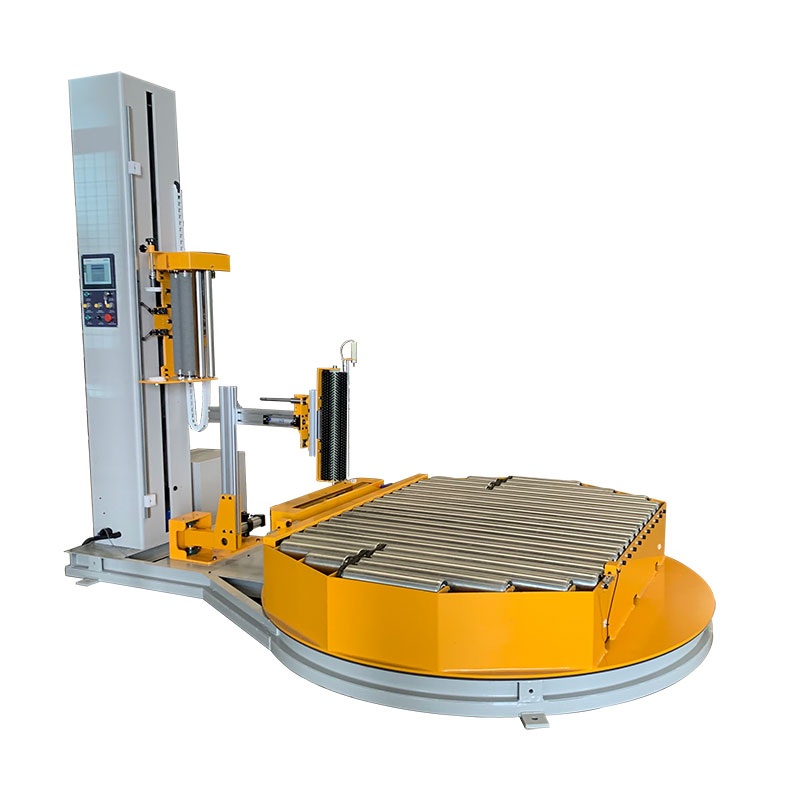

Automatic Pallet Wrapping Machine B100 Series
