Automatic Pallet Wrapping Machine B100 Series
Discover the B100 Series Automatic Pallet Wrapping Machine, featuring a motorized pre-stretch system for up to 300% film efficiency, PLC controls, and heavy-duty construction. Ideal for high-volume packaging.
Key Specifications
Custom Engineering Available
Need modifications? Our team can tailor this solution to your specific requirements.
Product Description
The Automatic Pallet Wrapping Machine B100 Series is designed for automated pallet packaging with integrated loading and positioning conveyors. Connected to conveying lines, it significantly enhances wrapping efficiency while incorporating an upgraded motorized pre-stretch system that reduces film usage. This fully automatic machine operates without manual intervention, except for consumable replacements such as strapping and packing materials.
The process begins with a forklift placing the pallet on the infeed conveyor, which transfers it to the packing position. The auto turntable pallet packing machine then wraps the strapped pallet with stretch film (LLDPE) automatically. Finally, the pallet is moved out via the outfeed conveyor by forklift, completing the packaging cycle. Note that infeed and outfeed conveyors are optional.
Key Benefits
- Motorized pre-stretch system for up to 300% film efficiency and cost savings
- PLC-controlled automation with HMI interface for easy operation
- Heavy-duty welded construction supporting loads up to 1800kg
- Adjustable wrapping layers (0-99 winds) for bottom, middle, and top
- Photocell sensor for load height detection and precise film delivery

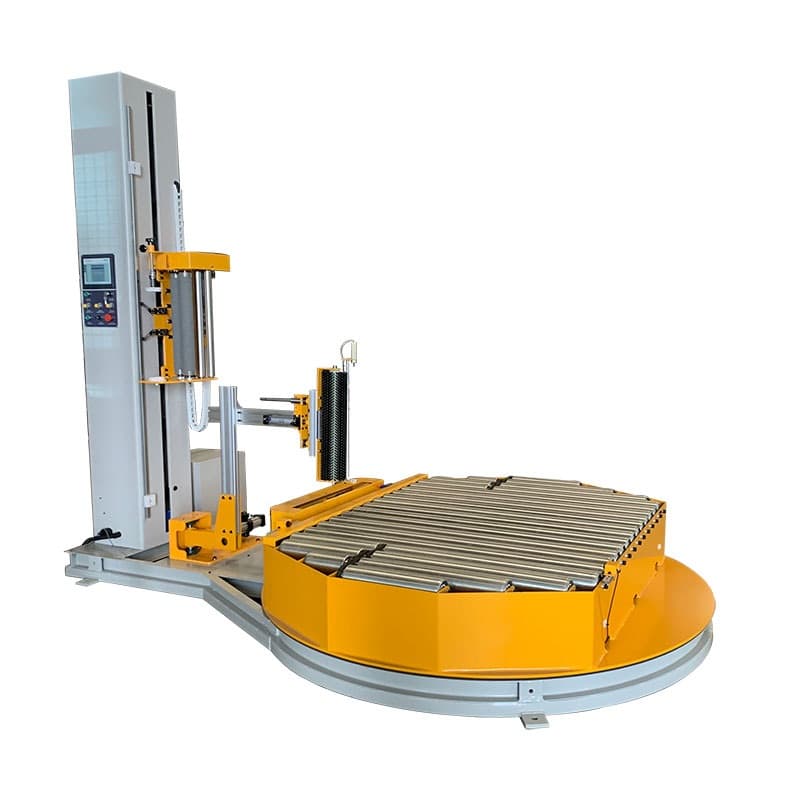

Automatic Pallet Wrapping Machine B100 Series Video
Watch our product demonstration to see the machine in action. Discover how it can improve your production efficiency and packaging quality.
Technical Specifications
| Specification | Value |
|---|---|
| Working Mode | Auto |
| Loads Per Hour | Min. 24 |
| Wrapping Method | Bottom, middle, and top wrapping layer can be set from 0-99 winds |
| Construction | Heavy duty, welded |
| Operator Interface | Separate buttons and HMI interface |
| Wrap Settings | Re-wrap function, overwrap and overlap adjustment |
| Wrap Counters | Independent top and bottom |
| Cycle Counters | Total cycle counter and resettable counter |
| Emergency Stop | Red mushroom head |
| Electrical Disconnect | Lockable |
| Electrical Enclosure | European approved |
| Film Type | LLDPE, thickness 0.025mm, length 500m-1500m, weight 15kg |
| Film Delivery Type | Pre-stretch |
| Pre-stretch Level | 250% (optional 100% to 300%) |
| Load Height Sensor | Photocell sensor |
| Film Carriage System Up And Down | Adjustable by inverter |
| Film Threading | Jinglin design, W film threading pattern |
| Pneumatic Film Cutting & Wiping System | Included |
| Film Clamper Mode | Scissors like gripper bars |
| Cutting Method | Instant heating wire |
| Wiping System | Soft brush to stick the film perfectly onto the pallets |
| Drive Mode | Chain-drive |
| Bearing Type | Ring gear |
| Start & Stop Mode | Soft start & stop |
| Turntable Height | Approx. 400mm |
| Turntable Rotating Speed | Max. 12rpm (adjustable) |
| Automatic Turntable Reset | Yes |
| Voltage | AC380 V, 3Phase, 50 Hz |
| Turntable Motor Power | Approx. 0.75kw |
| Roller Power | Approx. 0.75kw |
| Up-down Motor Power | Approx. 0.37kw |
| Pre-stretch Motor Power | Approx. 0.37kw |
| Air Supply | 6-8kgf/cm2 |
| Air Consumption | Approx. 1000ml/min |
Frequently Asked Questions
Common questions about Automatic Pallet Wrapping Machine B100 Series and our services.
Q:What is the maximum load capacity of the B100 Series Automatic Pallet Wrapping Machine?
Q:How does the motorized pre-stretch system improve efficiency?
Q:Is the machine fully automatic?
Q:What are the power requirements for this machine?
