Automatic Steel Tube Strapping Machine

Name: Automatic Steel Tube Strapping Machine
Brand: Industrial Solutions
SKU: 152
Availability: InStock

Model:152

High-reliability automatic steel tube strapping machine with manual operation options. Features PLC control, hydraulic system, and database management for efficient bundling.

Key Specifications

Strap Width:25, 32mm

Strap Feed And Take- Up Speed:2-3m/second

Tension Speed:6m/min

Item:Auto Strapping Machine

Strap Tension:7000-18000N

Custom Engineering Available

Need modifications? Our team can tailor this solution to your specific requirements.

Product Description

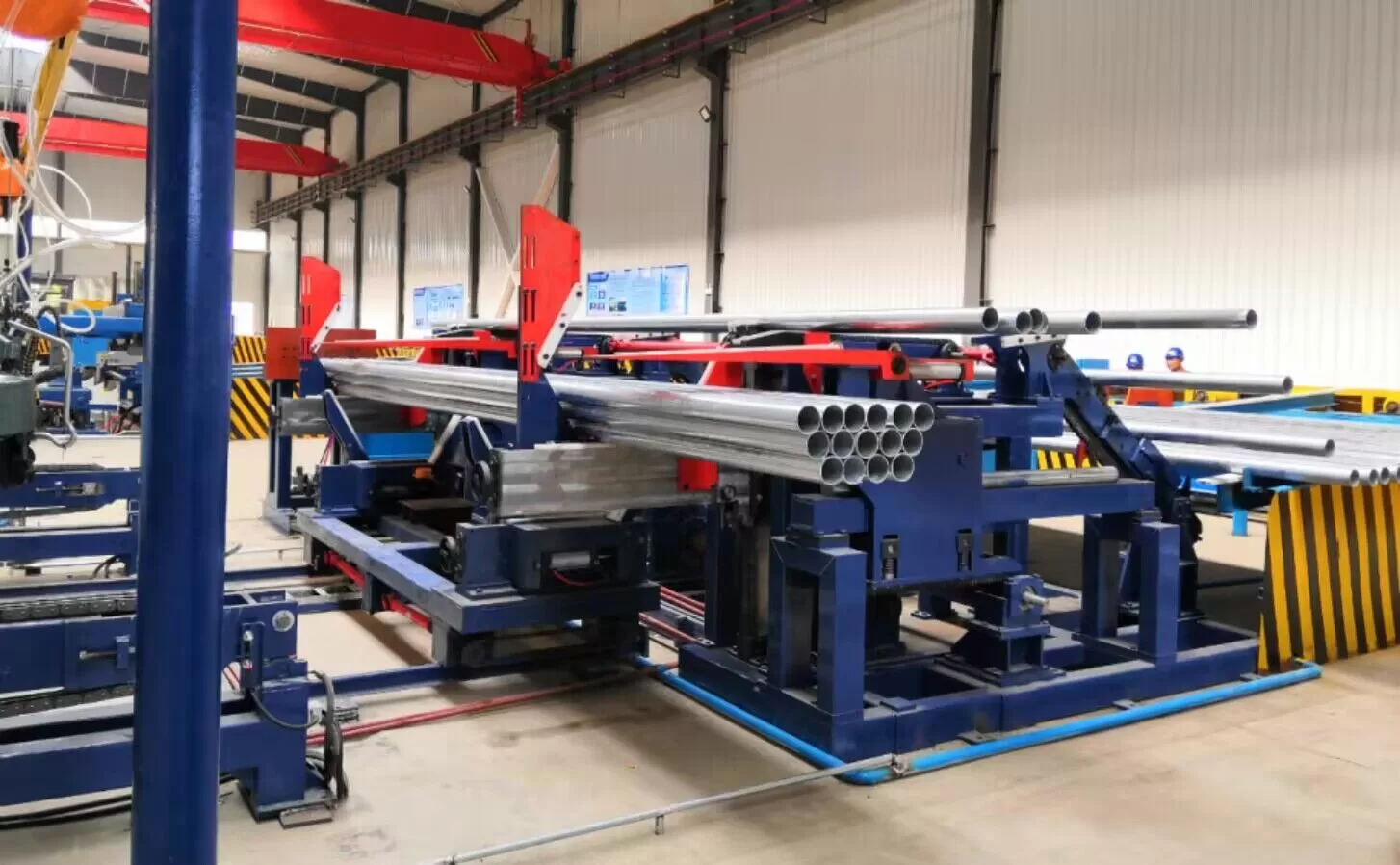

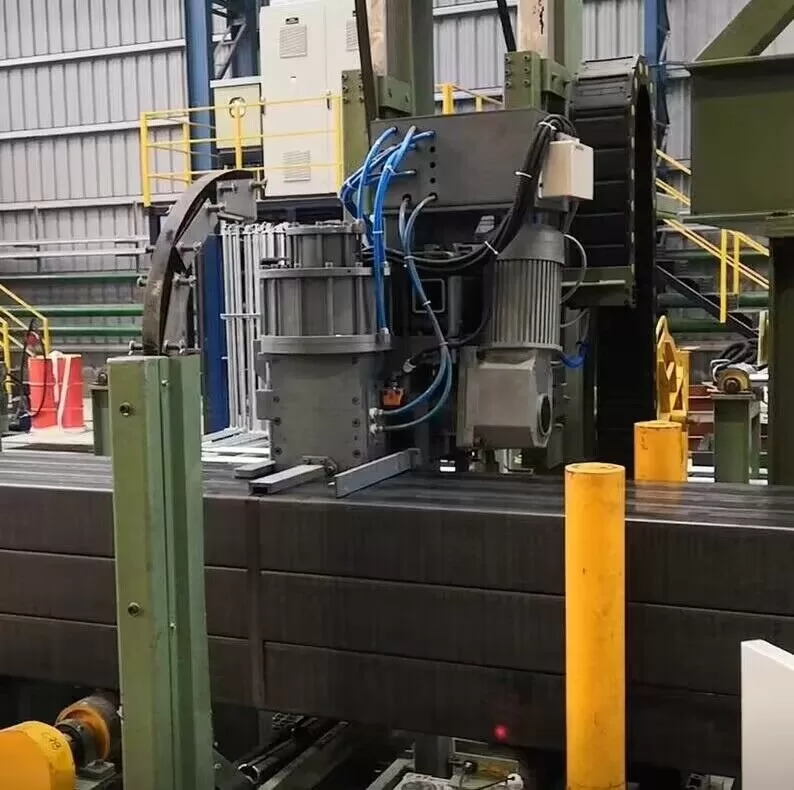

The automatic steel tube strapping machine performs strapping at various positions based on bundle length, with the machine fixed and the bundle moving for each operation. It includes manual operation capabilities for flexibility.

Key Benefits

High reliability with robust construction for continuous industrial use
Computer interface monitoring for bundle quantity, hexagonal crib dimensions, and strapping placement
Complete database management for tracking, querying, and stacking productivity data
PLC and HMI system with self-diagnosis and fault alerts for key components

Automatic Steel Tube Strapping Machine Video

Watch our product demonstration to see the machine in action. Discover how it can improve your production efficiency and packaging quality.

Technical Specifications

Specification	Value
Type Of Seal	Notching
Strap Material	Steel Strap
Strap Thickness	0.8/1.0mm
Hydraulic Pressure	100 bar
Work Pressure	80-90bar
Type Of Oil	Hydraulic Oil
Oil Cooling	With Water

Frequently Asked Questions

Common questions about Automatic Steel Tube Strapping Machine and our services.

Q:What is the primary function of this automatic steel tube strapping machine?

It automates the strapping of steel tube bundles, adjusting positions based on length, with optional manual operation for enhanced control.

Q:What monitoring capabilities does the machine offer?

It features a computer interface for monitoring bundle quantities, hexagonal crib dimensions, and strapping times and gaps, along with database management for productivity tracking.
