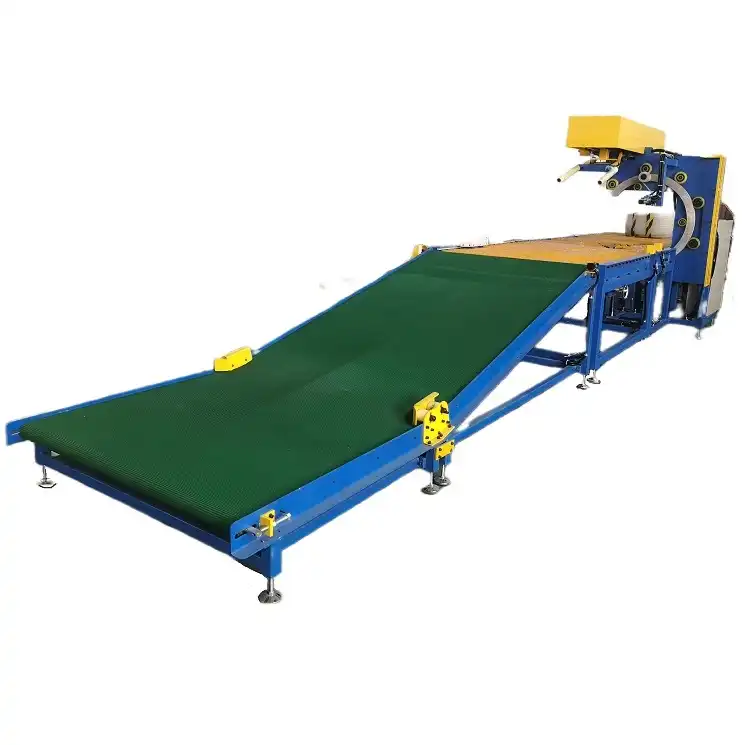

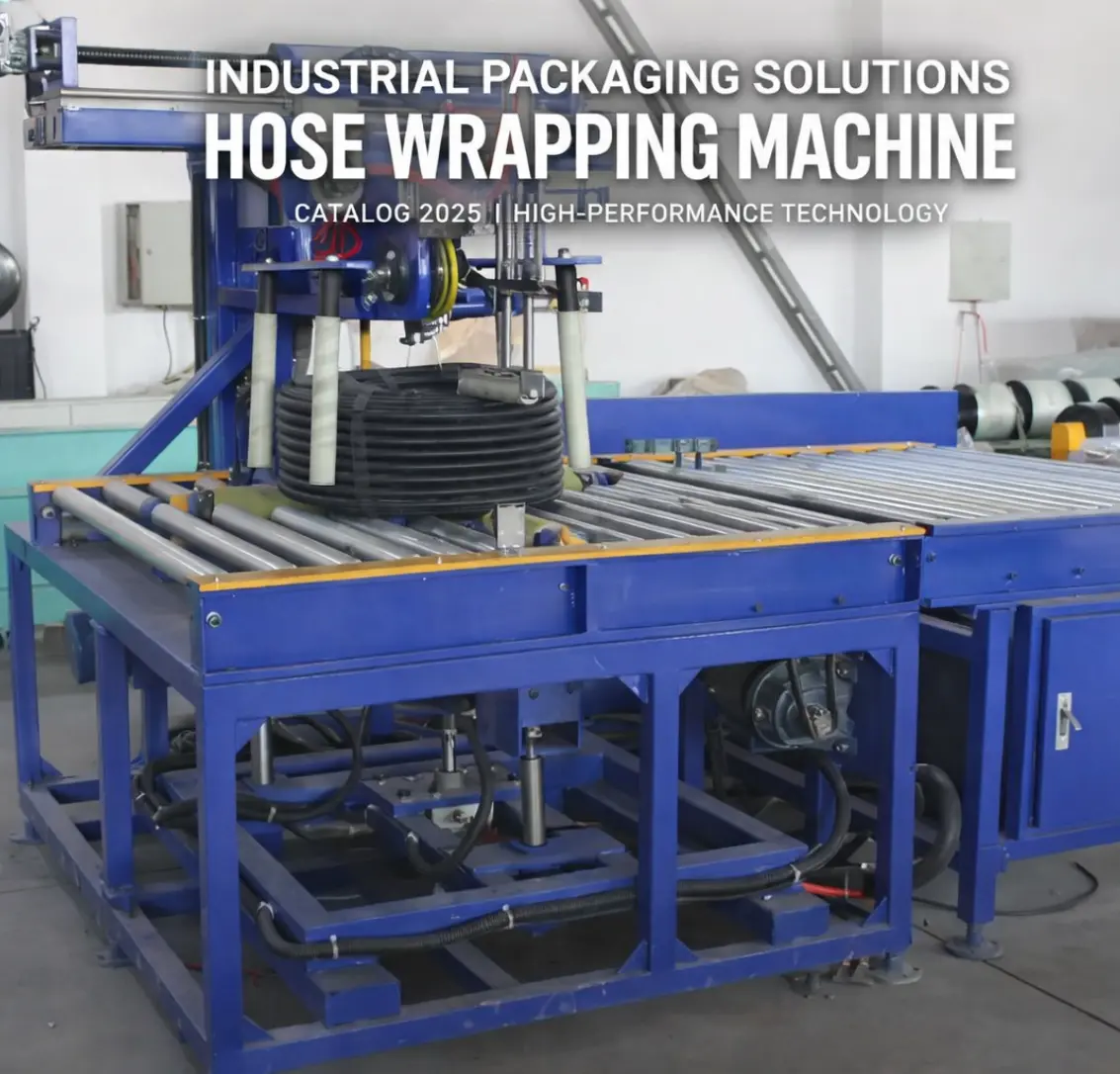

Automatic Hose Coil Wrapping Machine Line

Model:231

Boost efficiency with our automatic hose wrapping machine and horizontal coil packing line. Features PLC control, adjustable wrapping, and conveyor integration for seamless B2B packaging solutions.

Key Specifications

Width:120～300mm
Weight:10-150kg
Main Wrapping Speed:28-45sec/pcs
Max Speed of Ring:100r/Minute
Power Supply:380V 60Hz 3P
Power Consumption:3.8Kw

Custom Engineering Available

Need modifications? Our team can tailor this solution to your specific requirements.

Product Description

This hose wrapping machine is designed for online packing operations managed by a single operator, offering high automation and reliability in industrial settings.

It integrates advanced components and customizable features to handle various coil sizes and materials, ensuring optimal packaging performance and productivity.

Key Benefits

  • PLC-controlled coil packaging for precise automation
  • Conveyor integration for automatic loading and unloading
  • Adjustable wrapping tape tension and overlap rate from 10% to 90%
  • Supportive rollers with PU covering for product protection
  • Automatic mechanical hand for material clamping and feeding

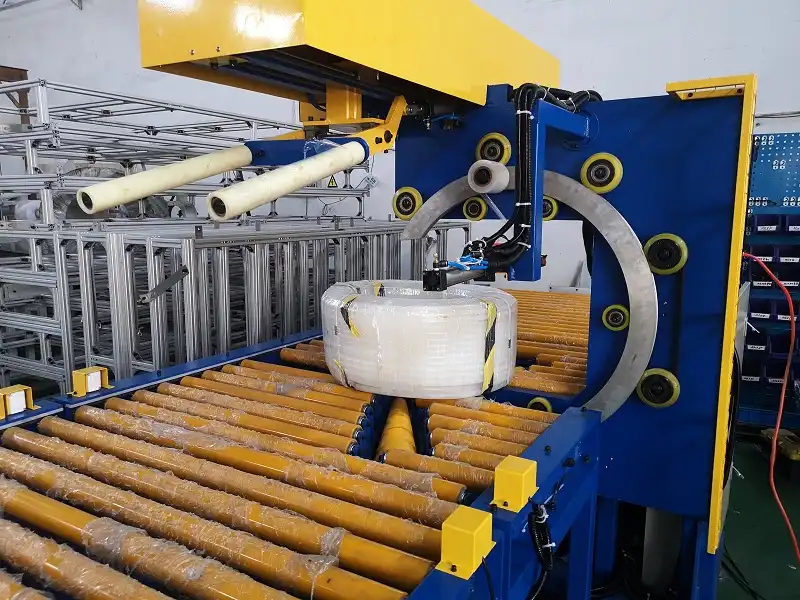

Automatic Hose Coil Wrapping Machine Line Video

Watch our product demonstration to see the machine in action. Discover how it can improve your production efficiency and packaging quality.

Technical Specifications

SpecificationValue
Machine ModelAutomatic hose wrapping machine line
I D of CoilΦ300～Φ1200mm
O D of CoilΦ700-Φ1400mm
Packing MaterialStretch film: OD:100-150mm, ID:50mm, Width:90mm; Paper (optional)
Special RequirementCustomized available

Frequently Asked Questions

Common questions about Automatic Hose Coil Wrapping Machine Line and our services.

Q:What is the main application of this hose wrapping machine?

This machine is used for online packing of hose coils, automating the wrapping process with one operator to enhance efficiency in industrial environments.

Q:Can this machine handle different coil sizes?

Yes, it supports coil inner diameters from Φ300mm to Φ1200mm and outer diameters from Φ700mm to Φ1400mm, with adjustable settings for various dimensions.

Q:What types of packing materials are compatible?

It is compatible with stretch film and optional materials like paper, HDPE, or woven fabrics, with adjustable tension and overlap for optimal wrapping.

Q:Is customization available for specific requirements?

Yes, customized solutions are available to meet unique packaging needs, including special configurations and material options.
