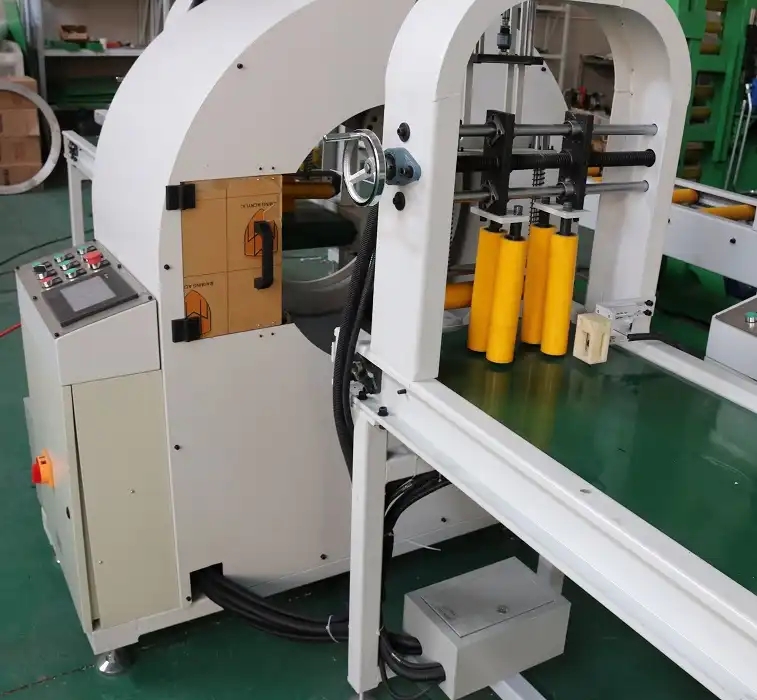

Aluminum Profile Sub-Bundle Spiral Wrapping Machine

Name: Aluminum Profile Sub-Bundle Spiral Wrapping Machine
Brand: Industrial Solutions
SKU: 641
Availability: InStock

Model:641

Discover the Fhopepack Aluminum Profile Sub-Bundle Wrapping Machine for efficient spiral wrapping of single profiles and bundles. Features PLC control, adjustable speeds, and safety systems.

Key Specifications

Weight:15-100kg

Speed:6-12 m/min

Ring Speed:20-90 r/min

Wrapping Speed:5-15 m/min

Power Output:about 2.5 kW

Power Voltage:380V, 3PH, 60Hz

Custom Engineering Available

Need modifications? Our team can tailor this solution to your specific requirements.

Product Description

This spiral wrapping machine is designed for aluminum profiles, suitable for both single profiles and profile bundles. It supports various packing materials, from paper to plastic film, and offers models ranging from simple to advanced for high-efficiency operations. The machine is engineered to coordinate seamlessly with workers, enabling a continuous workflow.

Key Benefits

Wrapping station with ring and double-rub wheel devices for safe, stable, and energetic operation
Adjustable friction between driving wheels and ring, with ring speed controlled by an inverter
Soft start and stop functions, wrapping position reset, and adjustable packing material tension
Conveyor system with automatic entrance and outlet, adjustable speed via inverter, and surface protection

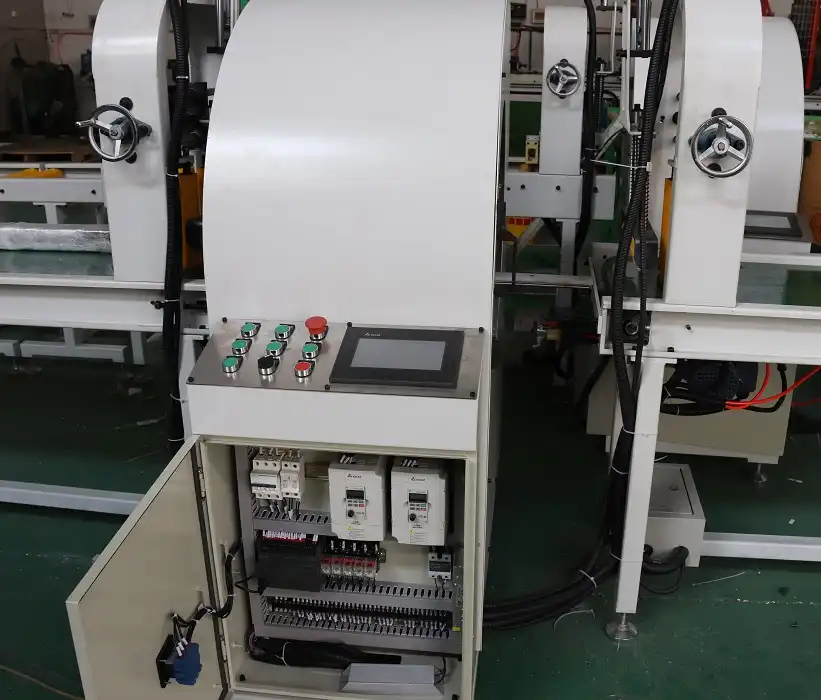

PLC control system for automatic wrapping, photocell sensors for positioning, and indicator alarms for troubleshooting
Automatic cutter and feeder system for unmanned operation, including material feeding and cutting

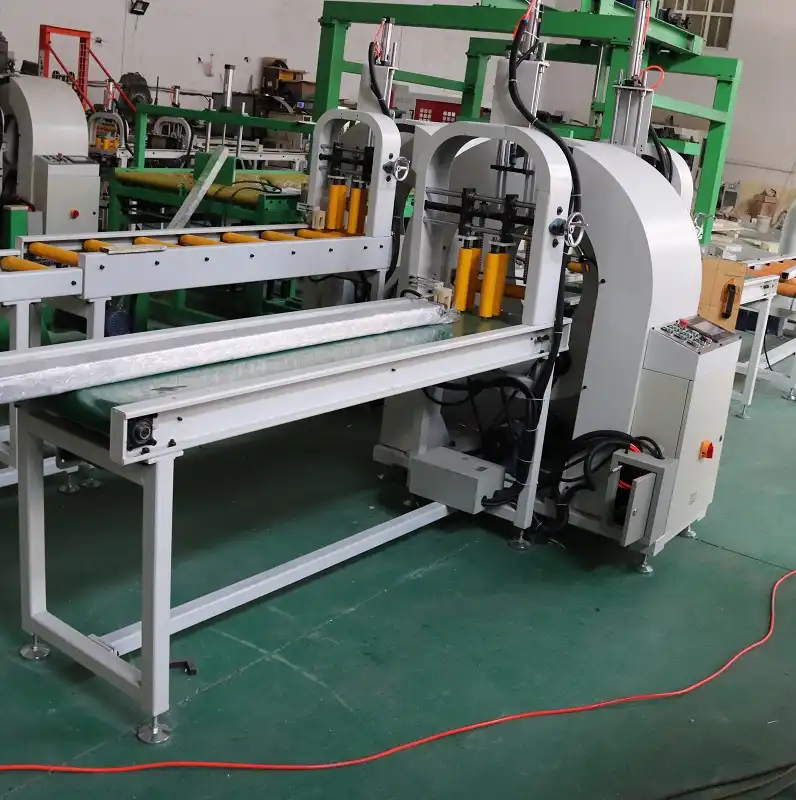

Aluminum Profile Sub-Bundle Spiral Wrapping Machine Video

Watch our product demonstration to see the machine in action. Discover how it can improve your production efficiency and packaging quality.

Technical Specifications

Specification	Value
Bundle O D	100-300mm
Bundle Length	>1000mm
In Feeding Conveyor Length	2000mm with motor
Out Feeding Conveyor Length	2000mm with motor
Packing Material	Polyethylene foil, OD: 100-200mm, Width: 100-200mm, ID: 50mm

Frequently Asked Questions

Common questions about Aluminum Profile Sub-Bundle Spiral Wrapping Machine and our services.

Q:What types of packing materials can this machine use?

This machine can use various packing materials, including paper and plastic film, such as polyethylene foil with specific dimensions.

Q:Is this machine suitable for both single profiles and bundles?

Yes, it is applicable to both single aluminum profiles and profile bundles, offering versatility in packaging operations.

Q:What safety features are included in the wrapping station?

The wrapping station includes a protect guardrail for safe operation, along with adjustable friction and speed controls to ensure stable and energetic performance.
