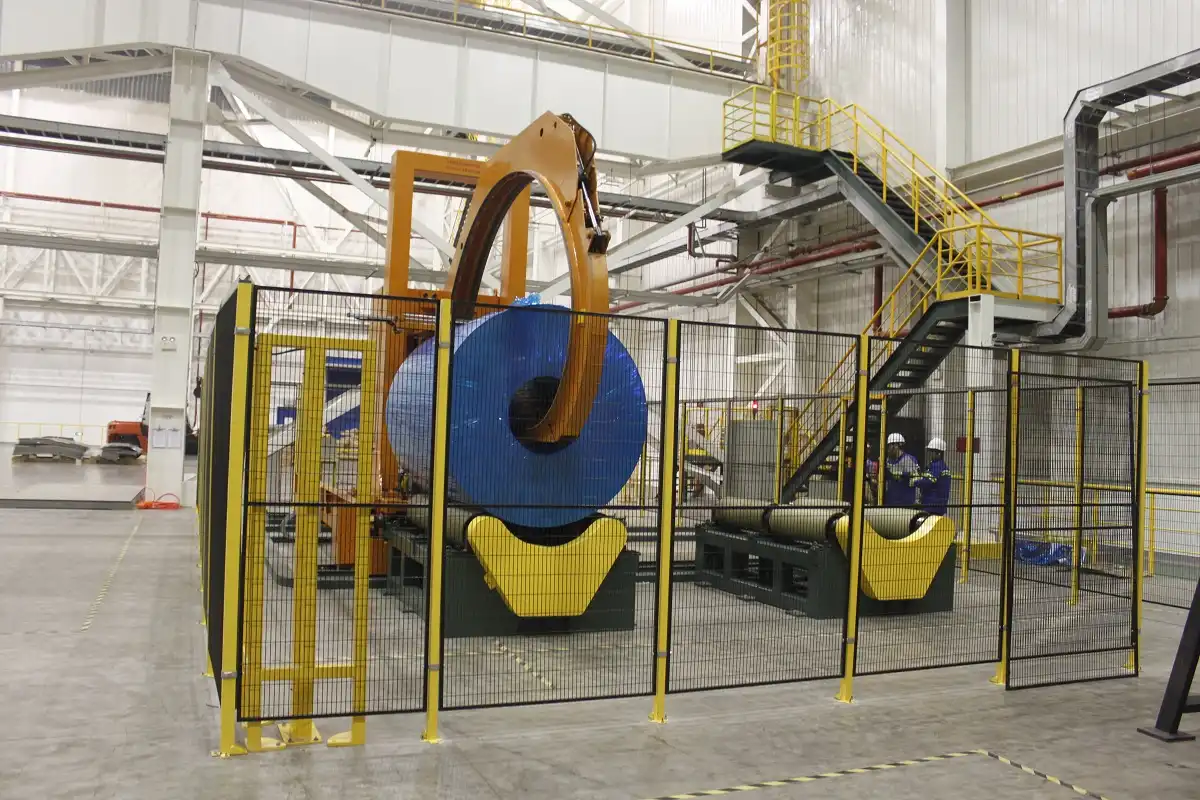

Master Coil Orbital Stretch Wrapper
Master steel coil packing machine with orbital wrapping for cold rolled steel coils. Features VCI film protection, automatic positioning, and handles coils up to 30,000kg. Professional installation and commissioning included.
Key Specifications
Custom Engineering Available
Need modifications? Our team can tailor this solution to your specific requirements.
Product Description
The Master Steel Coil Packing Machine is a specialized orbital wrapping system designed for cold rolled steel coils. It features two blocker roller stations and uses VCI film to provide dustproof protection, enhanced security, and decorative packaging.
The wrapping station automatically checks coil size for precise positioning and eye-through wrapping. With shuttles capable of carrying 2-3 film rolls for overlap wrapping and a reliable tension controller, this machine efficiently handles both large and small steel coils.
Key Benefits
- Orbital wrapping system with two blocker roller stations
- Uses VCI film for dustproof and protective packaging
- Automatic coil size detection and positioning
- Shuttles carry 2-3 film rolls for overlap wrapping
- Tension controller for handling various coil sizes
- Comprehensive installation, commissioning, and training services

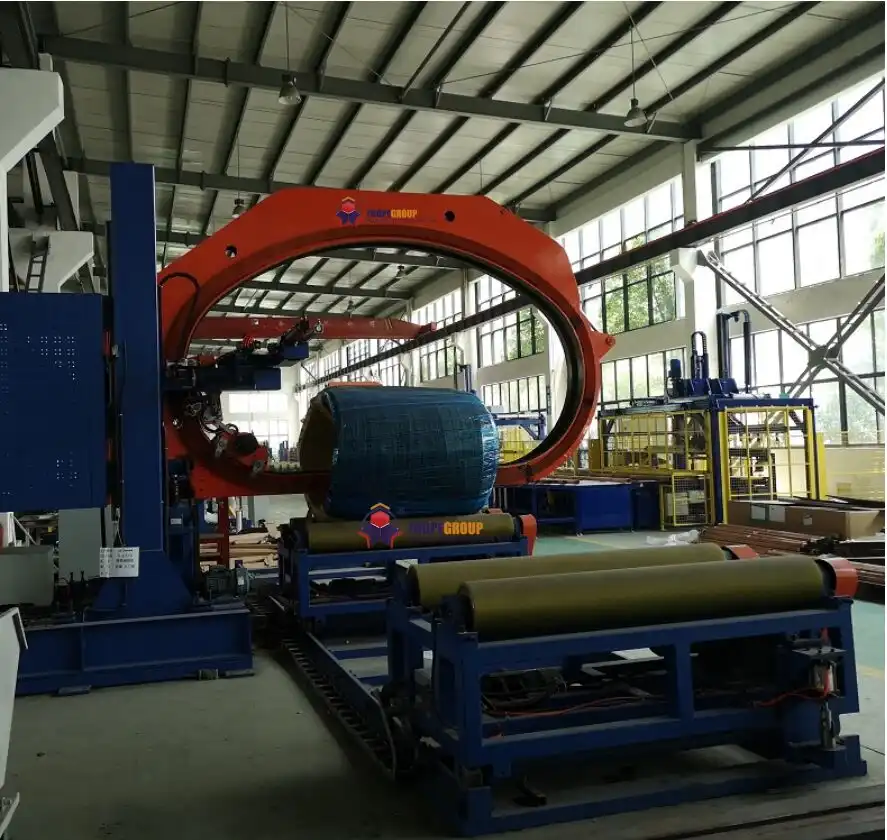

Master Coil Orbital Stretch Wrapper Video
Watch our product demonstration to see the machine in action. Discover how it can improve your production efficiency and packaging quality.
Technical Specifications
| Specification | Value |
|---|---|
| Object Material | Steel coil |
| Packing Material | VCI film/LLDPE stretch film/PVC |
| Film I D | 76 mm |
| Film O D | 100-250 mm |
| Overlap Rate | 20%-90% |
| Power | Approximately 15.0 kW |
| Power Supply | 380V, Three-phase five line |
| Hydraulic Supply | 140 bar |
| Air Supply | 6-8 kgf/cm² |
Frequently Asked Questions
Common questions about Master Coil Orbital Stretch Wrapper and our services.
Q:What types of steel coils can this machine handle?
Q:What packaging materials are compatible with this wrapping machine?
Q:What services are included with the machine purchase?
