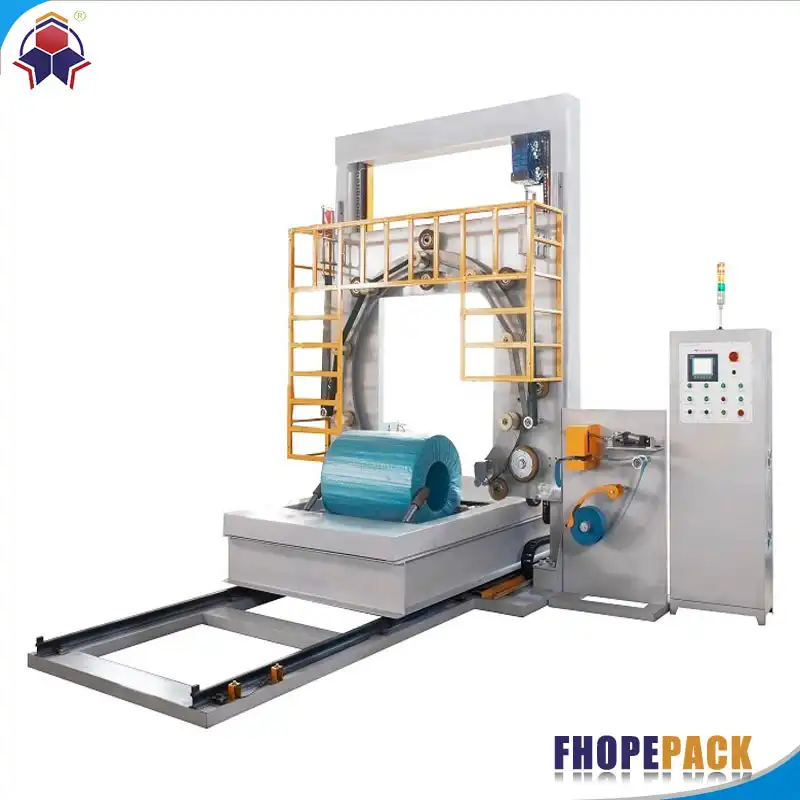

Industrial Aluminum Coil Paper Wrapping System with Integrated Transport Trolley
Professional aluminum coil paper packing machine with trolley for secure packaging. Features telescopic devices, adjustable settings, and supports various coil sizes. Ideal for industrial use.
Key Specifications
Custom Engineering Available
Need modifications? Our team can tailor this solution to your specific requirements.
Product Description
The ring-shaped packaging machine for aluminum coils is a highly sophisticated piece of equipment that is composed of various essential components.
These include a fixed plate and a control box, with a motor positioned on top of the fixed plate.
The motor is linked to a Z-direction telescopic device, which is further connected to an axial telescopic device.
At the opposite end of the axial telescopic device, there is a connecting rod that is welded and attached to a fuse device shell, providing added protection to the aluminum coils during the packaging process.
This unique design allows the machine to efficiently package aluminum coils of various sizes and shapes.
The telescopic devices enable the machine to adjust to the size and shape of the coil, ensuring a snug and secure fit during the packaging process.
The fuse device shell provides additional protection, ensuring that the coil is packaged safely and securely for transportation.
The machine's fixed plate and control box provide stability and control during the packaging process, while the motor and telescopic devices enable the machine to adjust to the specific needs of each coil.
This results in a highly efficient and effective packaging process that minimizes waste and ensures the safe transportation of aluminum coils.
Key Benefits
- Telescopic devices for adjustable packaging to fit various coil sizes and shapes
- Fuse device shell for added protection during packaging and transportation
- Stable fixed plate and control box for precise operation
- Efficient packaging process that reduces waste and ensures safe transport

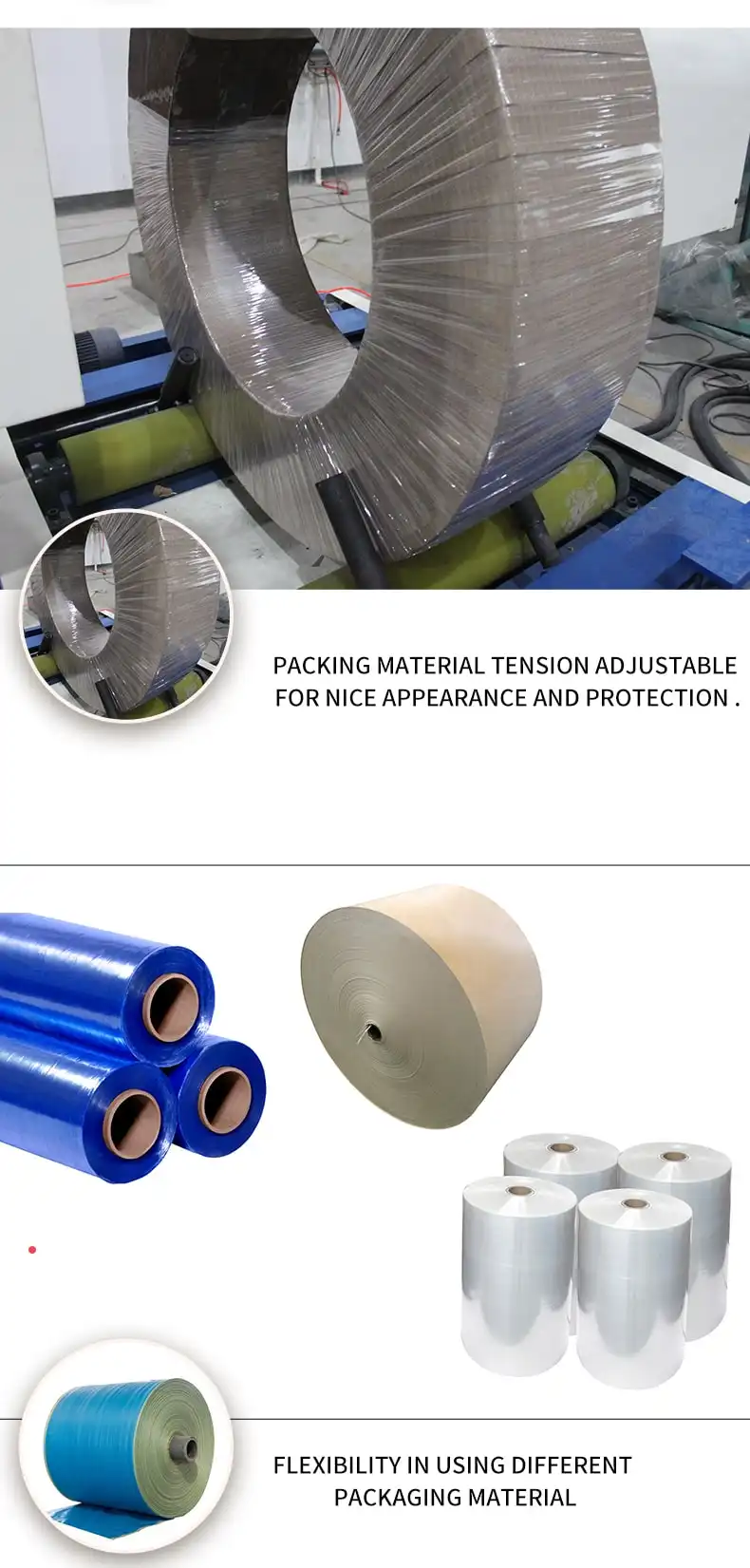

- Supports multiple packing materials including PVC, LLDPE, PE, PAPER, and HDPE

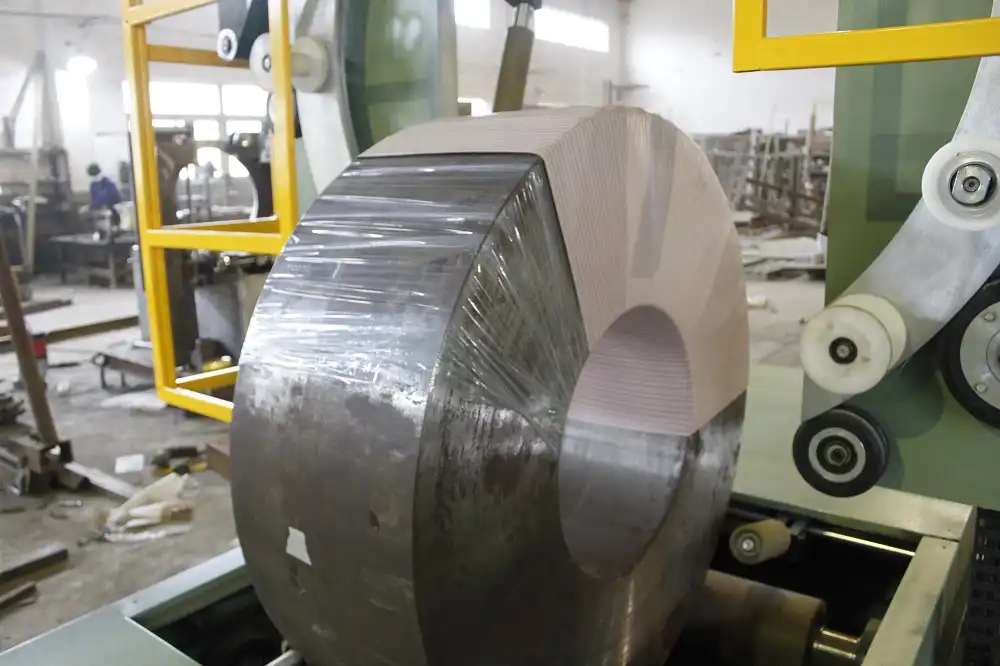

Industrial Aluminum Coil Paper Wrapping System with Integrated Transport Trolley Video
Watch our product demonstration to see the machine in action. Discover how it can improve your production efficiency and packaging quality.
Technical Specifications
| Specification | Value |
|---|---|
| Model | FPA-800 |
| Voltage | 380V 50Hz 3Phase (adjustable) |
| Packing Material | PVC/LLDPE/PE/PAPER/HDPE available |
| Packing Material Size | ID: 76mm, OD: 150-450mm, Width: 90-120mm |
| Overlapping Rate | 10%-90% (adjustable) |
| Air Supply | 5-7 kgf/cm² (optional) |
| Coil Loading and Unloading | by Crane |
Frequently Asked Questions
Common questions about Industrial Aluminum Coil Paper Wrapping System with Integrated Transport Trolley and our services.
Q:What types of aluminum coils can this machine package?
Q:What packing materials are compatible with this machine?
Q:How does the machine adjust to different coil sizes?
