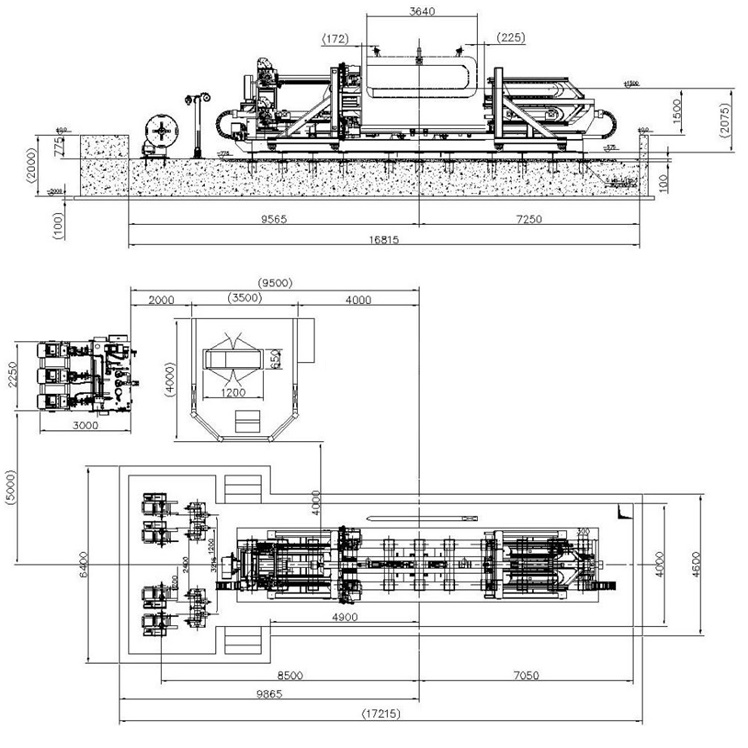

Horizontal Hydraulic Wire Rod Compactor with Integrated Steel Strapping System
High-efficiency hydraulic wire rod compactor with steel wire strapping machine for heavy-duty coil compacting and binding. Features 4 strapping heads, up to 50T force, and automated operation for transport and storage.
Key Specifications
Custom Engineering Available
Need modifications? Our team can tailor this solution to your specific requirements.
Product Description
The horizontal wire rod compactor is driven by a hydraulic and electric system, featuring two pressing stands with a compacting force of up to 50T for heavy-load wire rod compacting. This machine achieves great efficiency in wire rod coil loading, strapping, and unloading.
Connected to the end of a wire rod mill line, it automatically compresses and binds wire rod coils with strong binding force for transport or storage. A C-Hook crane transports wire rod coils in and out of the compactor, with rollers supporting the coil during strapping.
Equipped with 4 strapping heads for simultaneous belt strapping, it performs automatic wire drawing, stretching, twisting, and knot-making. Reliable electrical gear motor-driven feeding units ensure high success rates in wire feeding, stretching, and binding.
Key Benefits
- Hydraulic and electric drive system for robust operation
- Two pressing stands with up to 50T compacting force
- 4 strapping heads for efficient simultaneous binding
- Automated wire drawing, stretching, twisting, and knot-making
- C-Hook crane and rollers for easy coil handling and support
Horizontal Hydraulic Wire Rod Compactor with Integrated Steel Strapping System Video
Watch our product demonstration to see the machine in action. Discover how it can improve your production efficiency and packaging quality.
Technical Specifications
| Specification | Value |
|---|---|
| Wire Strapping Head | 4 sets |
| Press Stand Opening Size | 650-4700 mm |
| Overall Length Of Horizontal C- Hook | 3500 mm |
| Compactor Cycle Time | 30-40 seconds |
| Binding Wire Material | Wire rod in uniform quality unalloyed, 380MPa-450 MPa tensile strength, 28%-32% elongation |
| Hydraulic Pressure | 210 bar |
| Compacting Force | Adjustable 60-400 kN |
| Air Supply | 5.0-6.0 bar |
Frequently Asked Questions
Common questions about Horizontal Hydraulic Wire Rod Compactor with Integrated Steel Strapping System and our services.
Q:What is the maximum compacting force of this wire rod compactor?
Q:How many strapping heads does the machine have and what is their function?
Q:What are the key applications of this wire rod compactor?
