HomeCoil Packing MachineBearing packing machineHorizontal Bearing Bagging Machine for Small Bearings
Horizontal Bearing Bagging Machine for Small Bearings - View 1
1 / 2

Tap thumbnails to view different images

Bearing packing machine

Horizontal Bearing Bagging Machine for Small Bearings

Model:984

Optimize packing with Horizontal Bearing Bagging Machine for Small Bearings. Feat: Automatic PLC program control with servo system. Industrial grade solution.

Key Specifications

Material Outer Diameter:100-200mm
Material Inner Diameter:75mm
Bearing Size Outer Diameter:20-130mm
Bearing Width:10-80mm
Bagging Speed:Approximately 10-120 pcs/min
Power Supply:380V 3P 50/60Hz

Custom Engineering Available

Need modifications? Our team can tailor this solution to your specific requirements.

Product Description

This horizontal bearing packing machine is designed for small size bearings, offering automatic feeding and filling into a bag forming device with sealing capabilities at speeds up to 60 pieces per minute. It conforms to CE guidelines and utilizes the latest technology for reliable bearing packaging.

Key Benefits

  • Automatic PLC program control with servo system
  • Automatic bag sealing with precise temperature control
  • Adjustable action time for different packing purposes
  • Manual and automatic working modes for easy operation
  • Sensor and mechanical limiting stopper for bearing positioning
  • Motor overcurrent protection and automatic film feeding system

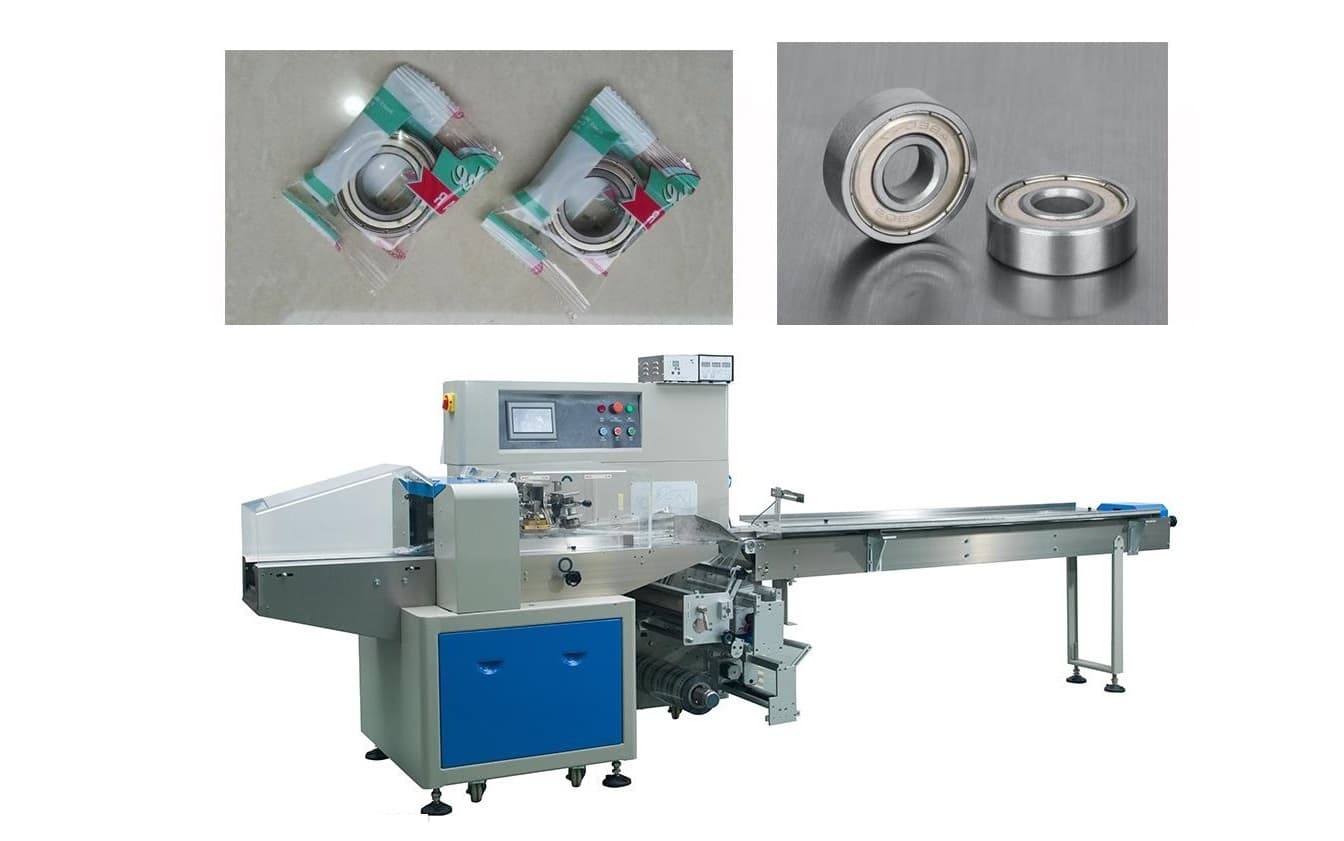

Horizontal Bearing Bagging Machine for Small Bearings Video

Watch our product demonstration to see the machine in action. Discover how it can improve your production efficiency and packaging quality.

Technical Specifications

SpecificationValue
Packaging MaterialOPP, OPP/CPP, KOP/CPP, ALU-FILM
Material Thickness20-40 micron
Air Supply5-7 bar

Frequently Asked Questions

Common questions about Horizontal Bearing Bagging Machine for Small Bearings and our services.

Q:What is the maximum speed of this bearing packing machine?

This machine can achieve bagging speeds of approximately 10 to 120 pieces per minute, depending on the bearing size and settings.

Q:Is this machine compliant with safety standards?

Yes, all bearing bag packing machines from this line conform to CE guidelines, ensuring they meet European safety and environmental standards.

Q:What types of packaging materials can be used with this machine?

It supports various packaging materials including OPP, OPP/CPP, KOP/CPP, and ALU-FILM, with a thickness range of 20-40 microns.
