FP-H24-TR Horizontal Autobag Machine

Name: FP-H24-TR Horizontal Autobag Machine
Brand: Industrial Solutions
SKU: 1012
Availability: InStock

Model:1012

Discover the FP-H24-TR Horizontal Autobag Machine, a cutting-edge packaging solution with advanced features like multi-position unwind, 20 bags/min efficiency, and integrated printing for reliable B2B operations.

Key Specifications

Power:AC 120V/220V, 60/50Hz 400W

Bag Width:6cm to 40cm

Model:FP-H24-TR

Description:Horizontal Roll Bag Automatic Printing & Packaging Machine

Dimension L× W× H Mm:1400x860x1240

Custom Engineering Available

Need modifications? Our team can tailor this solution to your specific requirements.

Product Description

The Horizontal Autobag Machine is a cutting-edge packaging machine that offers many advanced features.

Its multi-position unwind with tension control makes changeover quick and easy.

While its simple layout with few moving parts reduces lifetime costs and improves reliability.

The Control Screen provides access to the help system, on-board diagnostics, and performance data.

Making it easier than ever to keep your machine running smoothly.

Key Benefits

Multi-position unwind with tension control for quick and easy changeover
Simple layout with few moving parts to reduce lifetime costs and improve reliability
Control screen with help system, on-board diagnostics, and performance data for smooth operation
Integrated printing capabilities with support for various barcodes and software

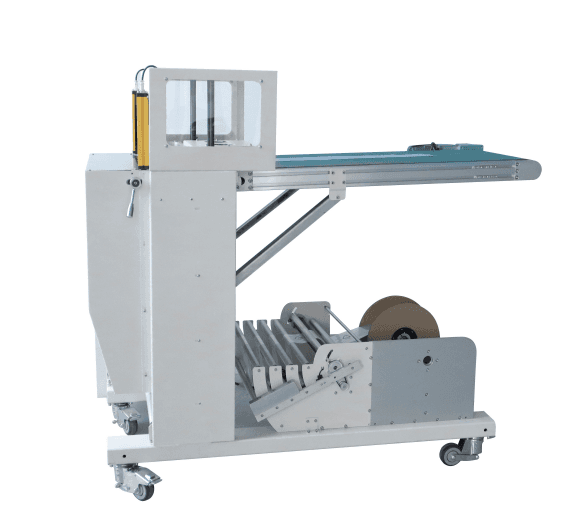

FP-H24-TR Horizontal Autobag Machine Video

Watch our product demonstration to see the machine in action. Discover how it can improve your production efficiency and packaging quality.

Technical Specifications

Specification	Value
Compress Air	0.7Mpa
Bag Length	20cm to 100cm
Film Thickness	0.04-0.15mm
Efficiency	20 bags / minute
Interface	7" HMI+7" HMI Chinese/English Manual
Startup Mode	Foot switch/Start button/Push bar/External signal
Safety	Safety grating
External Signal	Dry Contact, seen at external port definition in detail
Print Area	53mm x 125mm (SVM 53 C AB)
Print Resolution	12 dots/mm (300dpi) horizontally and vertically
Print Communications	RS-232(PC), LAN(Ethernet), USB
Barcodes	1D Barcodes (EAN-13, EAN-8, CODE 128, CODE 39, CODABAR, ITF 2of5, ITF 14, UPC-A, UPC-E), 2D Barcodes (Data matrix, QR Code, PDF417, Aztec code), GS-1 Barcodes (GS1-128, GS1-Datamatrix, GS1-Databar barcodes)
Compatible Software	SAYASIS Label Design (Real time date and time, text, counter, logo, shift codes, 1D/2D barcodes, GS-1 barcodes and GS-1 Creation Wizard support), Windows Printer Driver (32-64 bit), Teklynx Software (Code soft, Label view, and Label matrix), Emulator support, managing printer via SPPL (Savema Protocol) commands, working with all True-Type fonts (if font doesn’t pre-loaded, it must be imported to printer), Remote display control from PC, .csv file support for database

Frequently Asked Questions

Common questions about FP-H24-TR Horizontal Autobag Machine and our services.

Q:What is the efficiency of the FP-H24-TR Horizontal Autobag Machine?

The machine operates at an efficiency of 20 bags per minute, providing high-speed packaging for industrial applications.

Q:What types of barcodes does the integrated printer support?

It supports a wide range of barcodes including 1D barcodes like EAN-13 and CODE 128, 2D barcodes like QR Code and Data Matrix, and GS-1 barcodes for enhanced traceability.

Q:How does the machine ensure safety during operation?

The machine includes a safety grating to protect operators and prevent accidents, ensuring a secure working environment.
