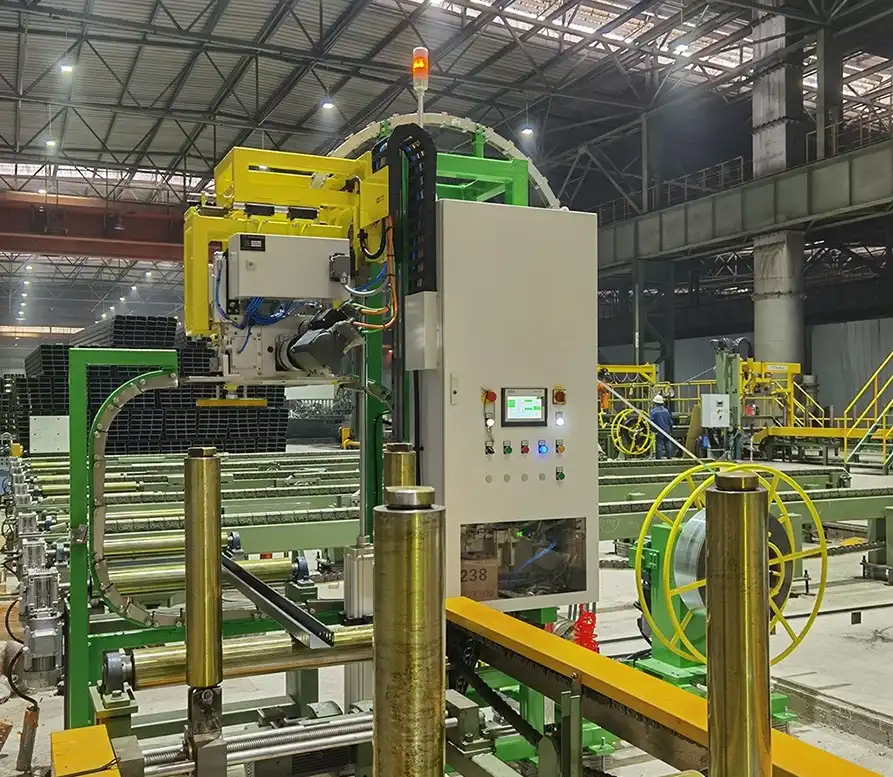

FH-32NH Full-Automatic Steel Pipe Bundle Strapping Machine
FHOPE's full-automatic steel belt strapping machine for steel pipe bundles offers high tension, reliable performance, and PLC control. Ideal for metallurgical industries.
Key Specifications
Custom Engineering Available
Need modifications? Our team can tailor this solution to your specific requirements.
Product Description

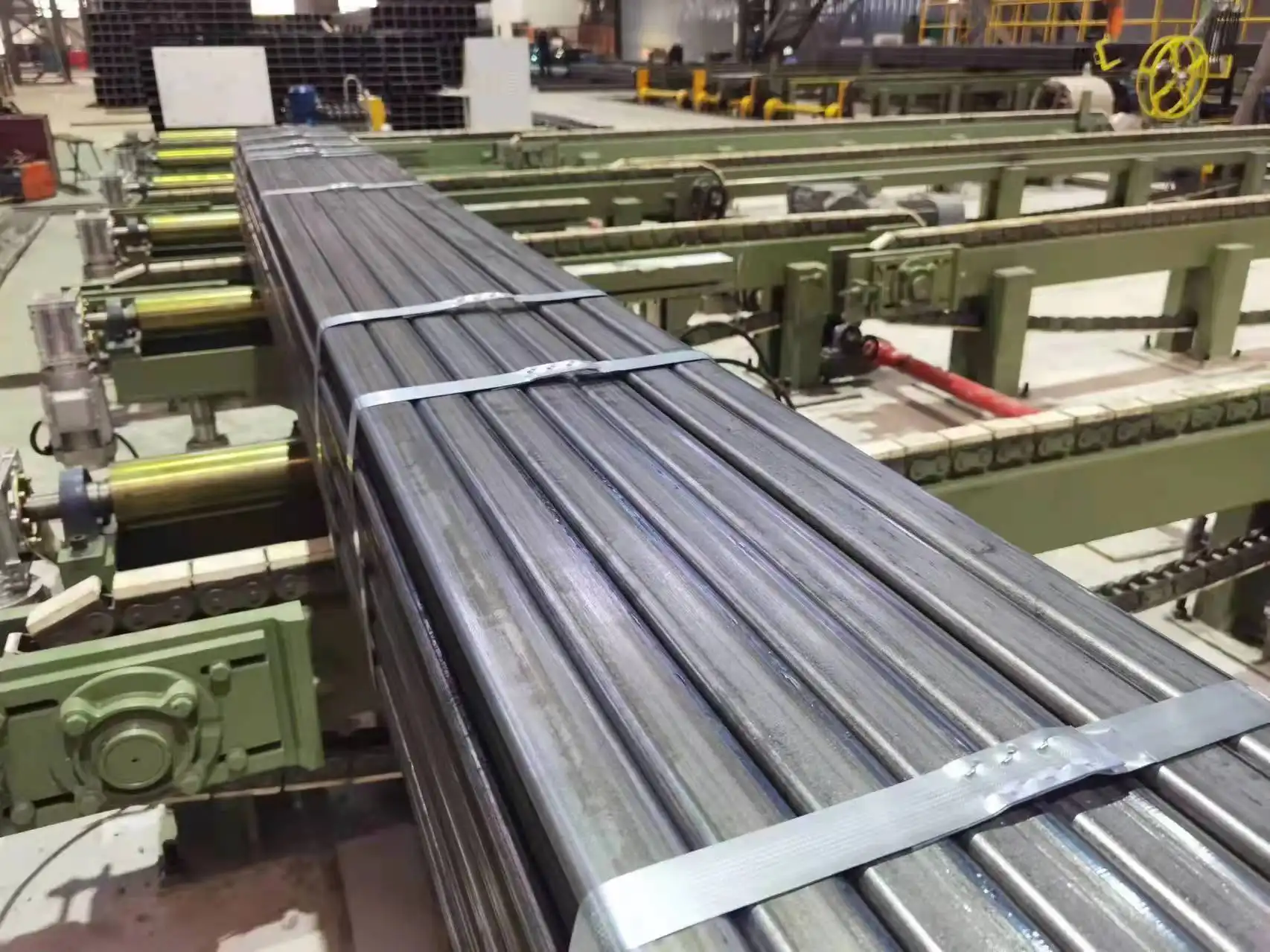

This solution is specially designed for automatic steel pipe bundle strapping, featuring a strapping head tested and proven in the metallurgical industry. FHOPE provides customized design, manufacturing, installation, commissioning, and on-site service.
The automatic strapping machine positions at fixed points and performs operations as the object moves, using Siemens PLC and HMI for beautiful, firm strapping, high speed, and improved packaging efficiency.
Key Benefits
- Equipped with FH-32NH strapping head for strong binding and high success rate
- Pneumatic drive for reliable operation in high-temperature environments
- PLC and touch screen control for automation and production line integration
- Adjustable orbital arch and machine frame for versatile strapping applications
- Supports steel belts with high tensile strength and customizable dimensions

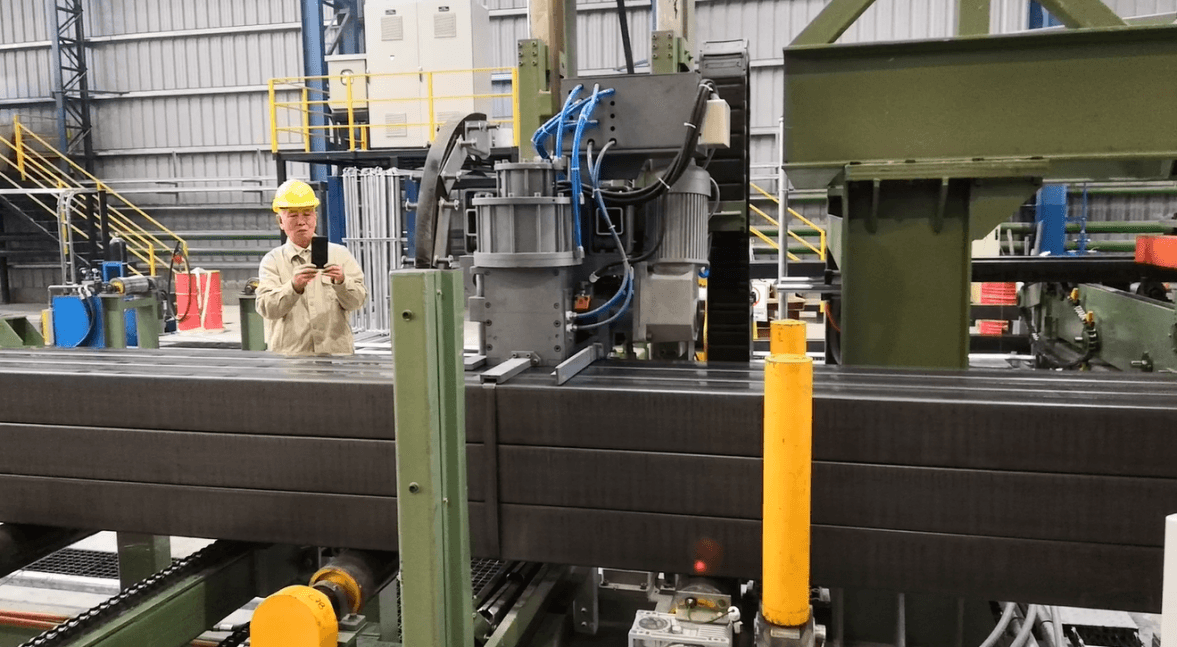

FH-32NH Full-Automatic Steel Pipe Bundle Strapping Machine Video
Watch our product demonstration to see the machine in action. Discover how it can improve your production efficiency and packaging quality.
Technical Specifications
| Specification | Value |
|---|---|
| Drive | Pneumatic |
| Buckle Storage | 180 pieces |
| Strapping Belt Reel | Motor-driven |
| Strap Material | Steel Belt (GB/T25820-201 or YB/T025-2002) |
| Strap Size | Double Belt, Width 31.75±0.127 mm, Thickness 0.8 mm |
| Coil Dimensions | ID 406 mm, OD 800 mm, Width 190 mm |
| Tensile Strength | Not less than 900 MPa |
| Elongation | Not less than 10% |
| Carbon Cold Rolled Steel | Tensile strength ≥950 N/mm, elongation ≥12% |
| Medium Carbon Cold Rolled Steel | Tensile strength ≥750 N/mm, elongation ≥18% |
| Strapping Belt Thickness | 0.8-1.1 mm |
| High Tension Force | 4000-20000 N |
| Strapping Breaking Force | 75% of steel belt tensile strength |
| Mode | Automatically and Manually |
| Bottom Arch Adjustment | Pneumatic |
| Top Arch Opening and Closing | Pneumatic |
Frequently Asked Questions
Common questions about FH-32NH Full-Automatic Steel Pipe Bundle Strapping Machine and our services.
Q:What is the primary application of this strapping machine?
Q:What type of control system does the machine use?
Q:Can the machine operate in high-temperature environments?
Q:What are the key features of the strapping head?
Q:Is customization available for this machine?
