Tyre packing machines

Automatic Tire Packaging Line

Name: Automatic Tire Packaging Line
Brand: Industrial Solutions
SKU: 670
Availability: InStock

Model:670

Discover our Automatic Tire Packaging Line, featuring horizontal wrapping, automatic tapping, labeling, and palletizing. Designed for tires 5-100kg, with PLC control and CE standards for reliable B2B automation.

Key Specifications

Tire Weight:5-100 kg

Tire Outer Diameter:600-1000 mm

Tire Inner Diameter:150-500 mm

Roller Speed:2-4 m/min

Packing Speed:30-35 sec/piece

Power Output:Approximately 2.2 kW

Custom Engineering Available

Need modifications? Our team can tailor this solution to your specific requirements.

Product Description

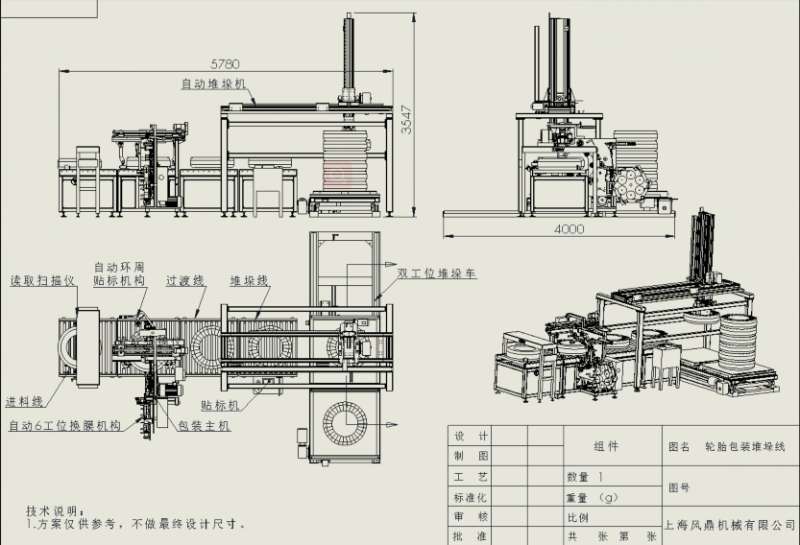

The Automatic Tire Packaging Line is an integrated automation system that includes horizontal tire wrapping, information reading and transmission, and tire palletizing. It is designed for high-level packaging, capable of automatically tapping tire outer diameters and exchanging packing materials. The system can be customized to fit specific spatial requirements and tire sizes, with options for information sharing.

Key Benefits

CE standard with international brand electrical components for safety and reliability
PLC and touch screen interface with user-friendly programming for easy operation

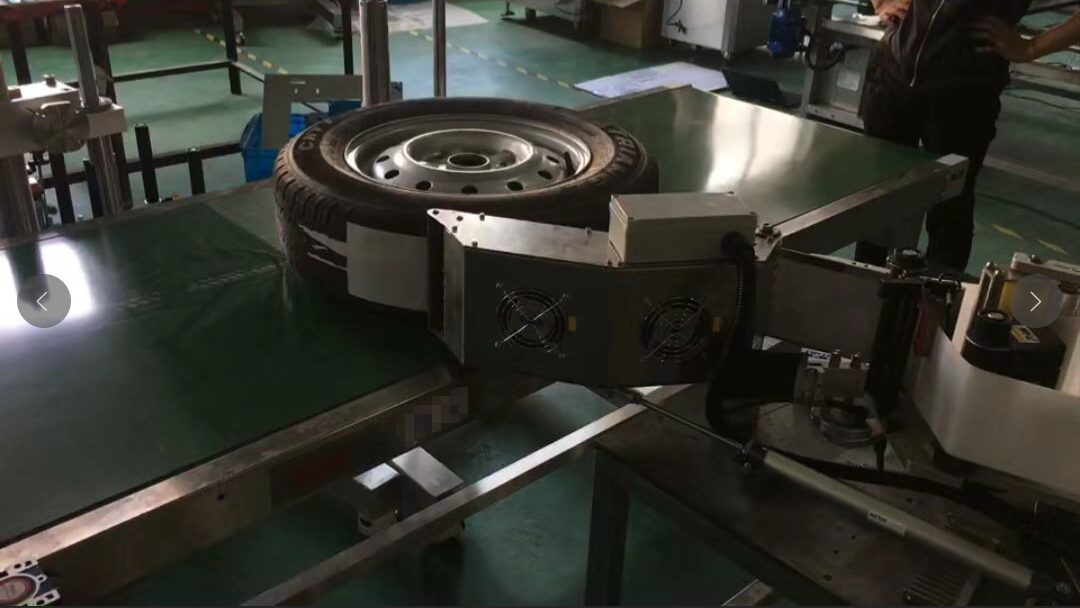

Automatic tapping device for applying BOPP adhesive tape to tire surfaces
Online printing and labeling machine with customizable layouts and data integration
Palletizing robot for automated stacking of packed tires on pallets

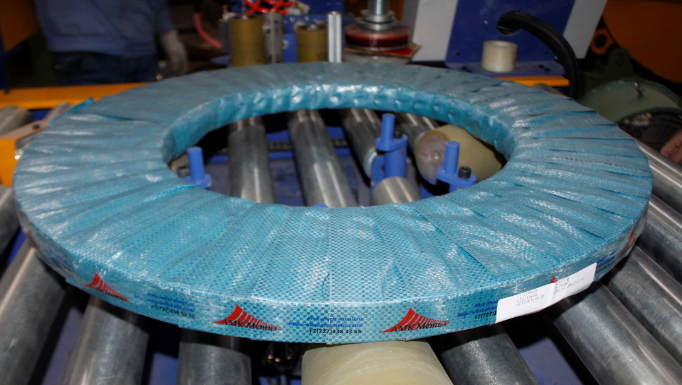

Adjustable wrapping film overlap from 20% to 90% and tension pre-setting
Soft start and stop functions with indicator alarms for error handling

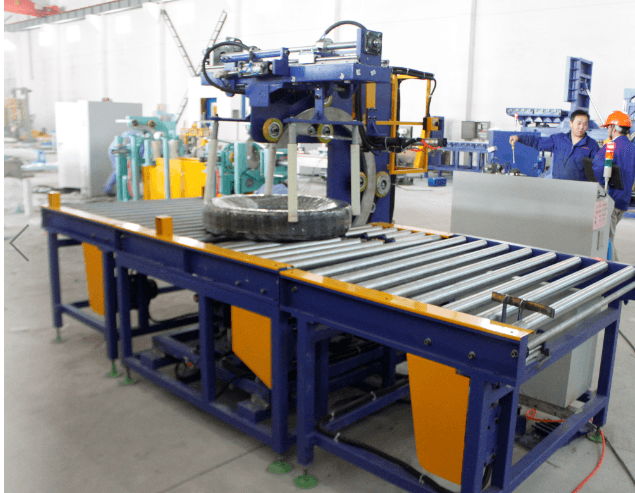

Automatic Tire Packaging Line Video

Watch our product demonstration to see the machine in action. Discover how it can improve your production efficiency and packaging quality.

Technical Specifications

Specification	Value
Tire Height	150-300 mm
Overlap Scope	20%-90%
Air Supply	5-7 bar
Power Voltage	380 V/50 Hz/3 phase
Packing Material	Stretch film with ID: 50 mm, OD: 80-120 mm, Width: 60-70 mm
Pallet Size	Length: 1200 mm, Width: 1200 mm
Stacking Total Height	1200 mm (with pallet)

Frequently Asked Questions

Common questions about Automatic Tire Packaging Line and our services.

Q:What is the main function of the Automatic Tire Packaging Line?

The line automates the packaging process for tires, including wrapping, tapping, labeling, and palletizing, to enhance efficiency and reduce manual labor in industrial settings.

Q:Can the system be customized for different tire sizes?

Yes, the system is designed to be adjustable and can be tailored to accommodate various tire sizes and specific customer requirements, including spatial constraints.

Q:What safety standards does the packaging line comply with?

The system meets CE standards and uses international brand electrical components to ensure safety and reliability in operation.

Q:How does the automatic tapping device work?

The automatic tapping device feeds and cuts BOPP adhesive tape onto tire surfaces, with adjustments for different tire sizes and heights to ensure precise application.

Q:What are the key electrical components used in the system?

Key components include Siemens PLC and touch screen, Siemens frequency converters, Airtec pneumatic elements, Autonics sensors, and Schneider switches and contactors for robust performance.
