Tyre packing machines

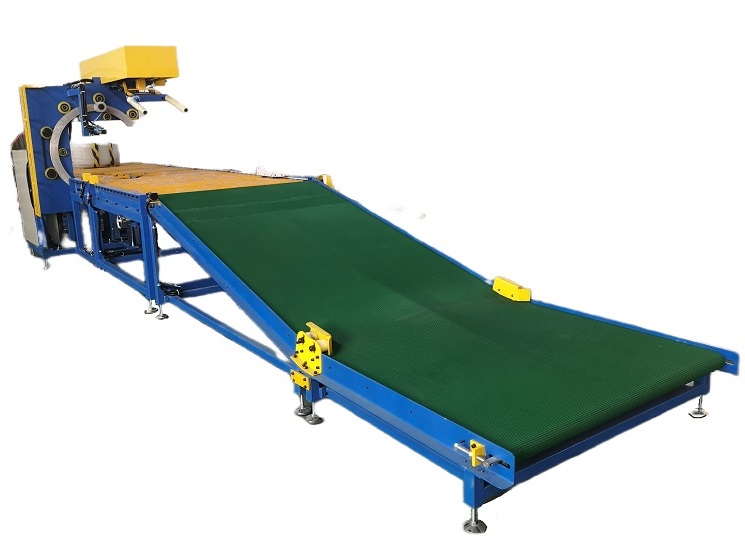

Automatic Horizontal Tire Stretch Wrapper

Model:738

Discover our Automatic Horizontal Tire Stretch Wrapper with auto conveyor, film feeding, and 360-degree sealing. Handles tires 10-100kg, 600-1400mm OD for 25-35 sec/pcs.

Key Specifications

Tire Weight:10-100kg
Tire Outer Diameter:600-1400mm
Tire Inner Diameter:300-900mm
Roller Speed:2-4m/min
Packing Speed:25-35sec/pcs
Rotating Speed:10-120r/min

Custom Engineering Available

Need modifications? Our team can tailor this solution to your specific requirements.

Product Description

The Automatic Horizontal Tire Stretch Wrapper is equipped with an auto roller power conveyor for tire in-feeding and out-unloading, automatic film feeding and cutting, and automatic positioning for OD full-sides wrapping packing with film.

Our team supplies a complete system after the coil spooler, including a spool picker, wrapping machine, and dispense station to dispense coils to different buffer conveyors.

This horizontal wrapper is designed for online tire packing, featuring tire and ring rotation to cover the tire surface 360 degrees with a sealed package.

It is capable of working with different tire outer diameters simultaneously.

Key Benefits

  • Auto roller power conveyor for in-feeding and out-unloading
  • Automatic film feeding and cutting
  • Automatic positioning for full-sides wrapping
  • 360-degree sealed package coverage
  • Handles multiple tire outer diameters at once

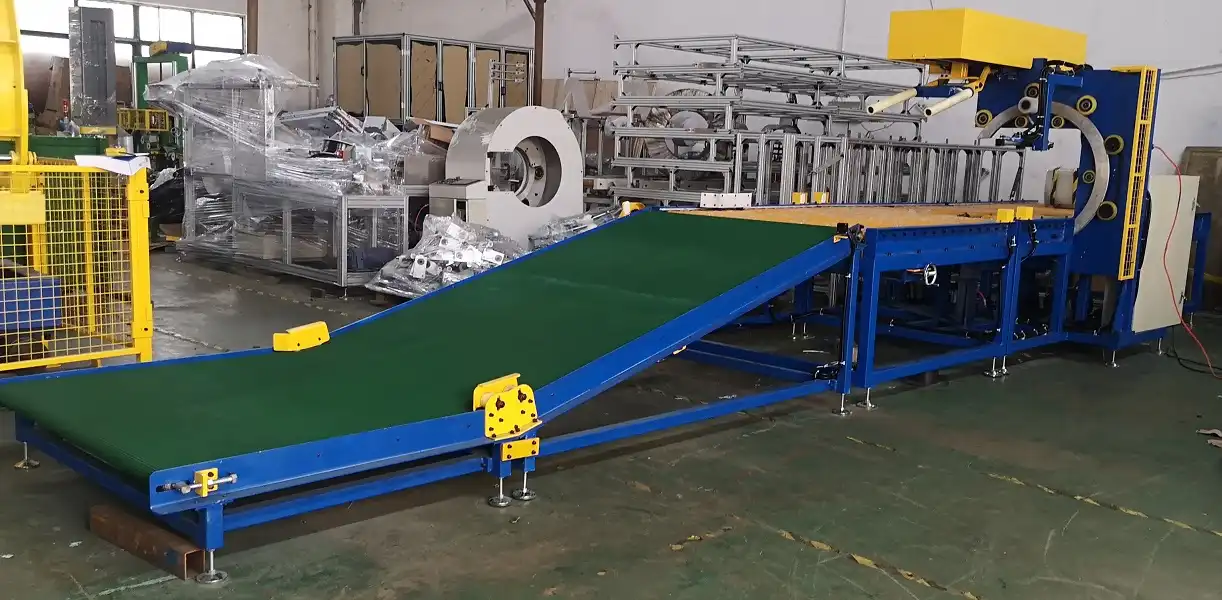

Automatic Horizontal Tire Stretch Wrapper Video

Watch our product demonstration to see the machine in action. Discover how it can improve your production efficiency and packaging quality.

Technical Specifications

SpecificationValue
Machine ModelAutomatic | Online
Tire Height150-350mm
Air Supply5-7bar
Power OutputApprox. 4.0kw
Power Voltage380v/50Hz/3ph
Packing MaterialStretch film: ID 50mm, OD 80-120mm, Width 90-120mm; Paper/PE film/Aluminum foil: ID 50mm, OD 100-450mm, Width 90-120mm

Frequently Asked Questions

Common questions about Automatic Horizontal Tire Stretch Wrapper and our services.

Q:What is the packing speed of this tire stretch wrapper?

The packing speed is 25-35 seconds per piece, ensuring efficient and rapid packaging for high-volume operations.

Q:Can this machine handle different tire sizes?

Yes, it is designed to work with various tire outer diameters from 600mm to 1400mm simultaneously, offering versatility in packaging applications.
