Automatic Cable Coiling and Heat Shrink Wrapping System
Discover our automatic cable winding and shrinking machine for efficient packaging. Features PLC control, adjustable coiling, and heat shrinking with POF/PE film. Boost productivity with reliable industrial solutions.
Key Specifications
Custom Engineering Available
Need modifications? Our team can tailor this solution to your specific requirements.
Product Description

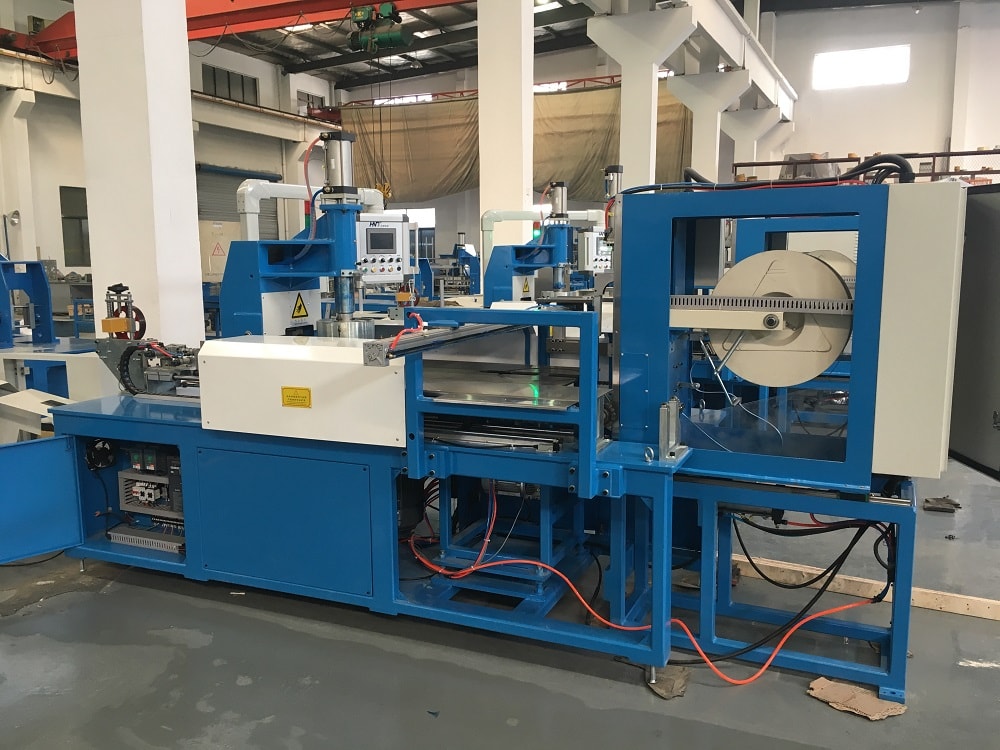

Our automatic cable winding and shrinking machine integrates advanced technology to create a fully automated packaging line. Choose between online or offline machine types for versatile operation. After coiling, cable coils are seamlessly conveyed to the heat shrinking machine to complete the packaging process.
The automatic coiling machine efficiently forms cables into coils, performs automatic cutting, and transfers coils to the shrinking machine. This system ensures high-speed, consistent packaging with minimal manual intervention.
FHOPE PACKING specializes in packaging machinery with over ten years of experience in cable coil packing. Our professional technical and after-sales teams are ready to serve customers worldwide, helping optimize packaging for maximum benefits and market competitiveness.
Key Benefits
- PLC and HMI control program for automatic operation
- Adjustable coiling outer diameter and cable cutting length
- Automatic error detection with alarm system
- Sensor-based automatic cable position detection
- Tension control to prevent deformation during coiling
- Two protective guards for secure coil handling
- Pressing device for stable and fixed cable coils
- Fully enclosed heat shrinking machine with high-quality sealing
- L-type feeding for POF/PE film with pretty appearance
- Compatible with strapping machines for further packaging

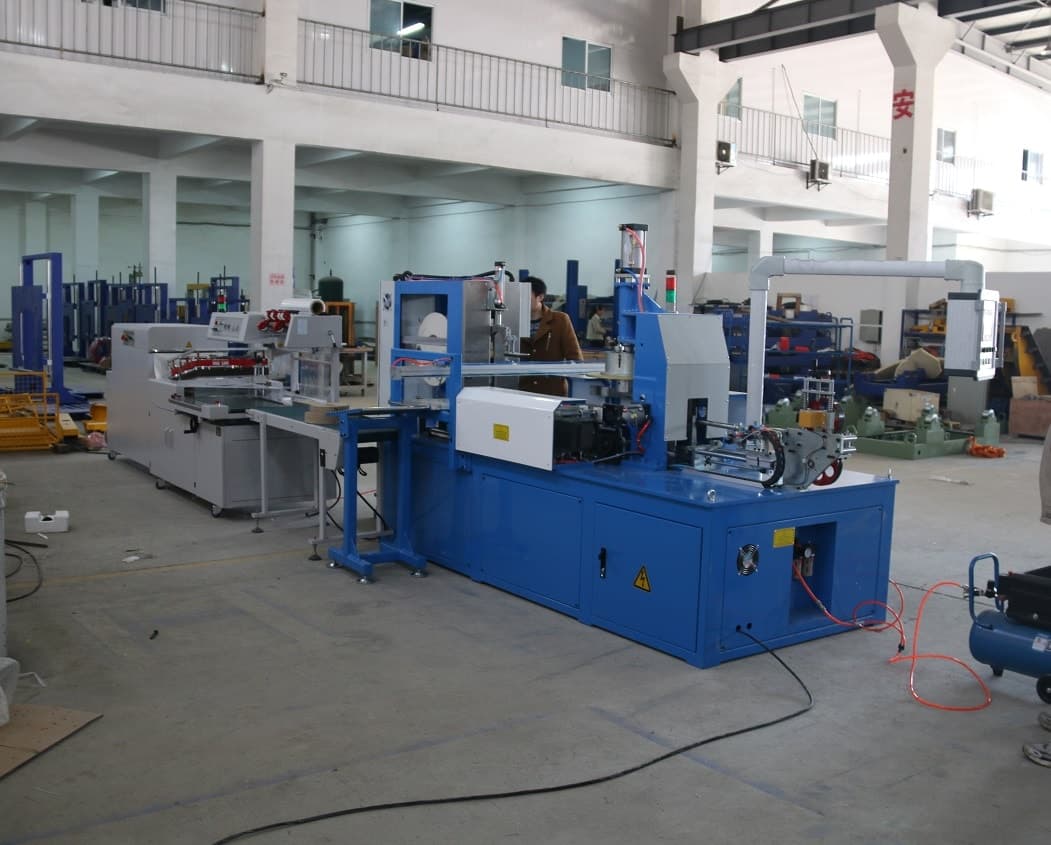

Automatic Cable Coiling and Heat Shrink Wrapping System Video
Watch our product demonstration to see the machine in action. Discover how it can improve your production efficiency and packaging quality.
Technical Specifications
| Specification | Value |
|---|---|
| Coil Size | ID: 140-200mm, OD: 240-460mm, Height: 60-100mm, Weight: 50kg max |
| Air Supply | 6bar |
| Coil Feed Style Mode | Hold coil type |
| Meter Counter | 0.01m-100m |
| Sealing Mode | Full closed |
| Sealing Height | ≤200mm |
| Product Size | Width + height ≤700mm |
| Product Length | Infinite |
| Film Type | POF / PE |
| Max Film Size | 580mm x 280mm |
| Tunnel Oven Size | Depends on product length |
| Tunnel Conveyor Speed | Variable |
| Tunnel Conveyor | Chains with rotating silicon coated rods |
| Working Height | 780mm-820mm |
| Air Pressure | ≤0.5MPa (5bar) |
Frequently Asked Questions
Common questions about Automatic Cable Coiling and Heat Shrink Wrapping System and our services.
Q:What types of machines are available for this packaging line?
Q:How is the coiling process controlled?
Q:Can the machine handle different cable sizes?
Q:What safety features are included?
Q:What are the power requirements for this machine?
